定制 280W UV LED 模组，用于 UV 固化和医疗

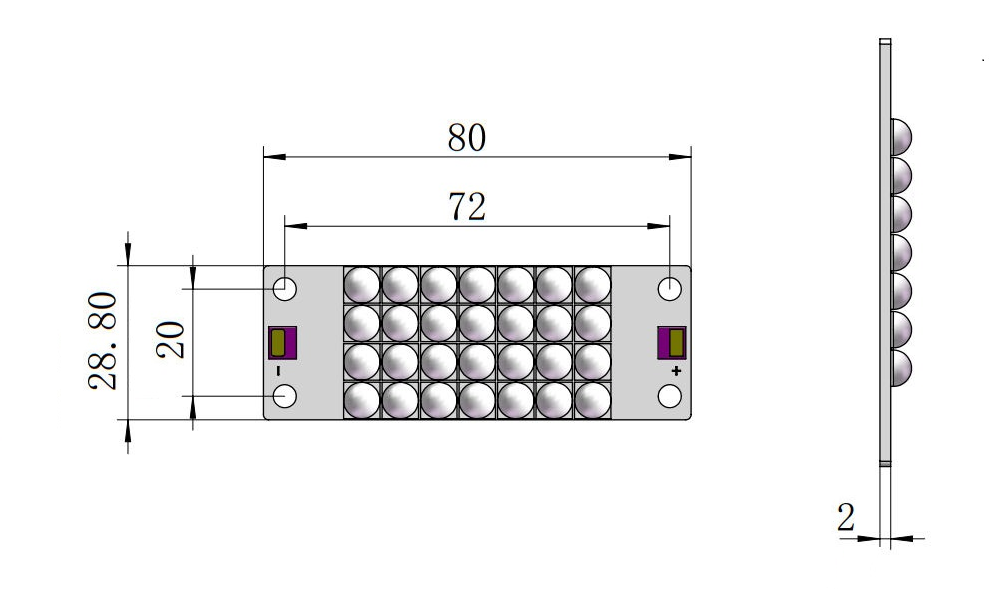

封装尺寸 (mm):
规格:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 42 | 49 | V | IF=5600mA | |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 60 | --- | deg. | IF=5600mA |
| Radiant Power | Po | 25 | 35 | W/CM² | IF=5600mA | |
| Peak Wavelength | λp | 365 | 420 | nm | IF=5600mA |
