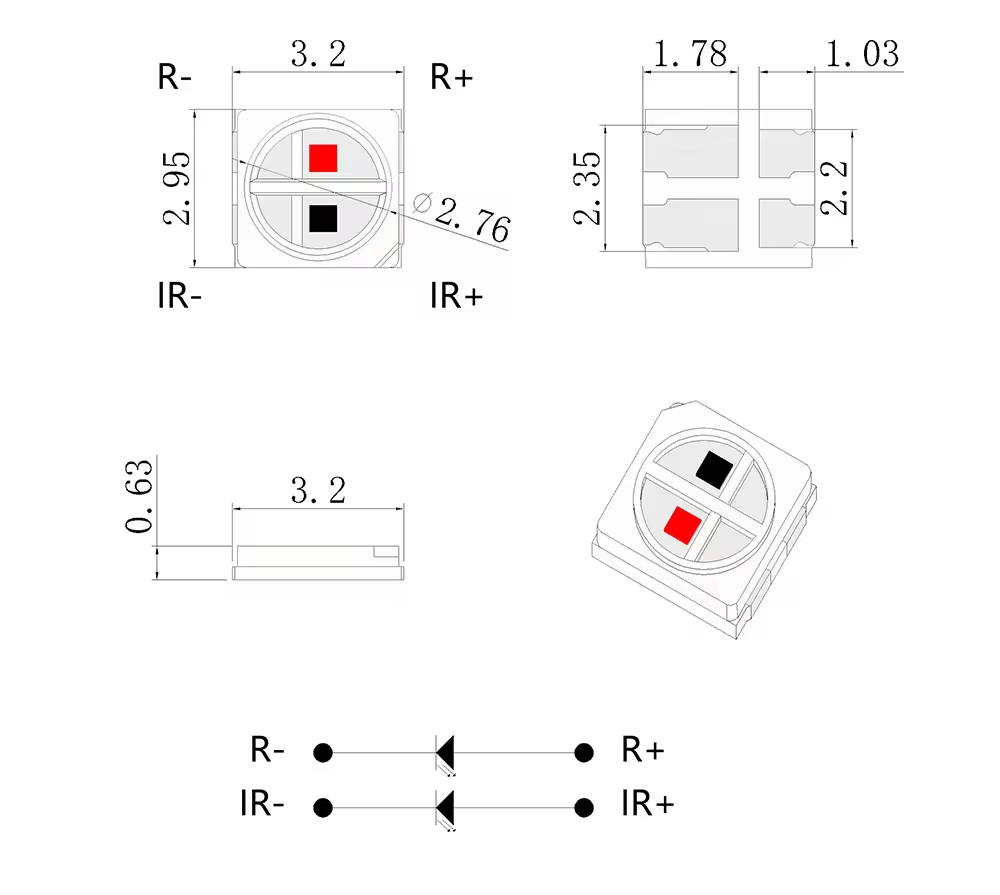

封装尺寸 (mm):
绝对最大额定值 @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
|---|---|---|---|
| Continous Forward Current | IF | 20 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 40 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 0.2 | W |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +85°C | °C |
| Storage Temperature | TSTG | -35°C to +105°C | °C |
| Lead Soldering Temperature | TSOL | 360°C | °C |
电气光学特性 @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | IR | 1.8 | 2.0 | V | IF=20mA | |
| IR | 1.4 | 1.6 | V | IF=20mA | |||
| Reverse Current | IR | 10 | μA | VR=5V | |||
| Viewing Angle | 2θ1/2 | 180 | deg | IF=20mA | |||
| Luminous Flux | Φ | R | 1 | 2 | lm | IF=20mA | |
| IR | 5 | 10 | mW | IF=20mA | |||
| Wavelengths | λp | IR | 655 | 660 | nm | IF=20mA | |
| IR | 845 | 850 | 855 | nm | IF=20mA |
