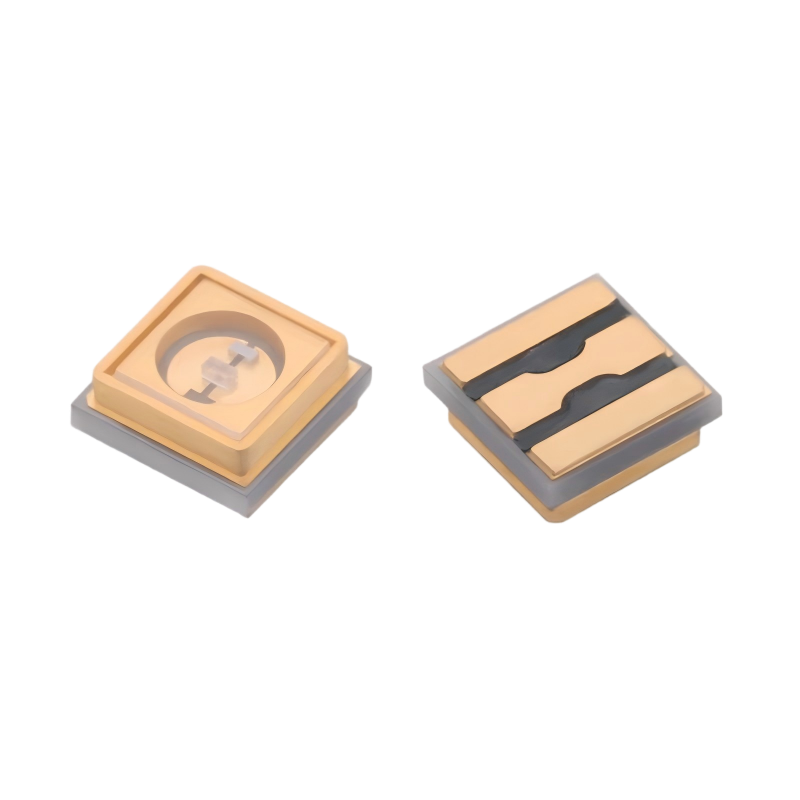

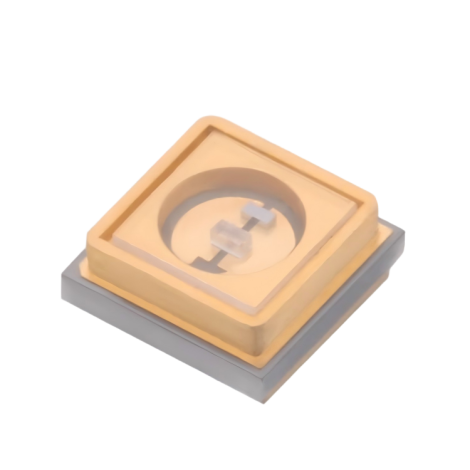

0.2W 270nm SMD3535 UVC LED Emitter for Disinfection Systems
Product Model: WL-02P3535UVC120-U270
Features:
- Ceramic substrate, Quartz lens
- Meet CE, ROHS Compliance
- Applications: Personal hygiene, Water disinfection, Portable devices, Air disinfection, Surface disinfection
- Abvailable Beam Angle: 30°, 60°, 120°
- Packaging Size: 3535 (3.5x3.5mm), 3838 (3.8X3.8mm)
- The UVC wavelengths is available from 250nm to 285nm .
- Custom Solution: We provide custom UVB+UVC solutions, if you need any support, please contact us.

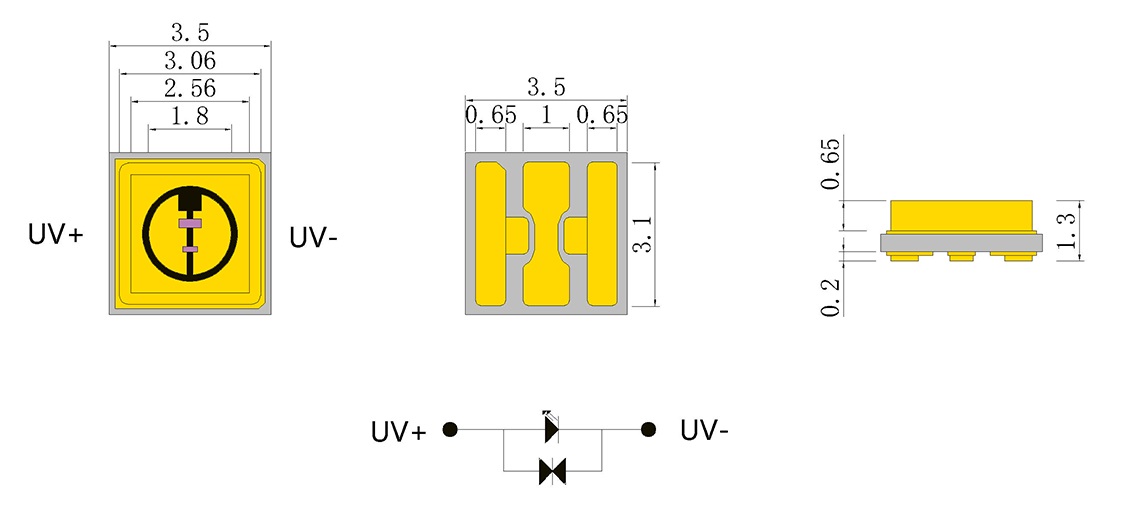

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | UVC | 5 | 6 | 7 | V | IF=40mA |
| Radiant Power | Po | UVC | 5 | 10 | mW | IF=40mA | |
| Peak Wavelength | λp | UVC | 270 | 280 | nm | IF=40mA | |
| Reverse Current | IR | UVC | 3 | μA | VR=5V | ||
| Viewing Angle | 2θ1/2 | UVC | 120 | deg | IF=40mA |
