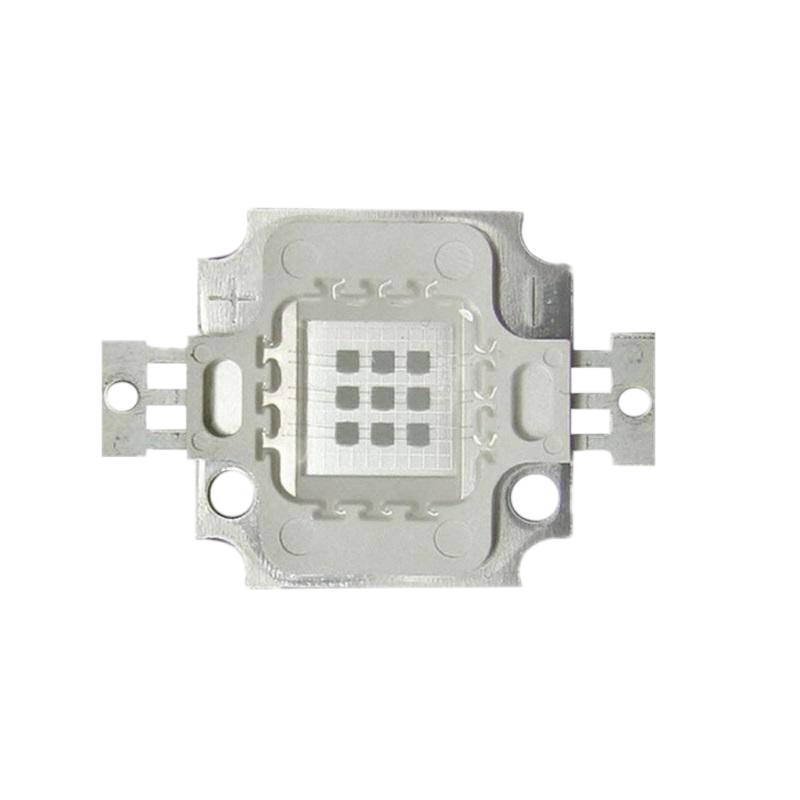

10W Cyan 490nm High Power LED
Product Model: WL-P10EP4545G140-490
Features:
- 99.99% gold wire bonding, 1.2mil
- Red copper substrate
- Epileds, 9pcs * 45mil Chips
- Meet CE, ROHS Compliant
- Applications: Health Care Equipment, Aquarium lighting, horicultural lighting and other professional or commercial lighting.
- Substrate Type: Square and Round base available
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
>> 10W 490nm LED Spectrum
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 9.0 | --- | 10.0 | V | IF=1050mA |
| Reverse Current | VR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 140 | --- | deg. | IF=1050mA |
| Luminous Flux | Φ | 300 | --- | 500 | lm | IF=1050mA |
| Peak Wavelength | λp | 485 | 490 | 495 | nm | IF=1050mA |
