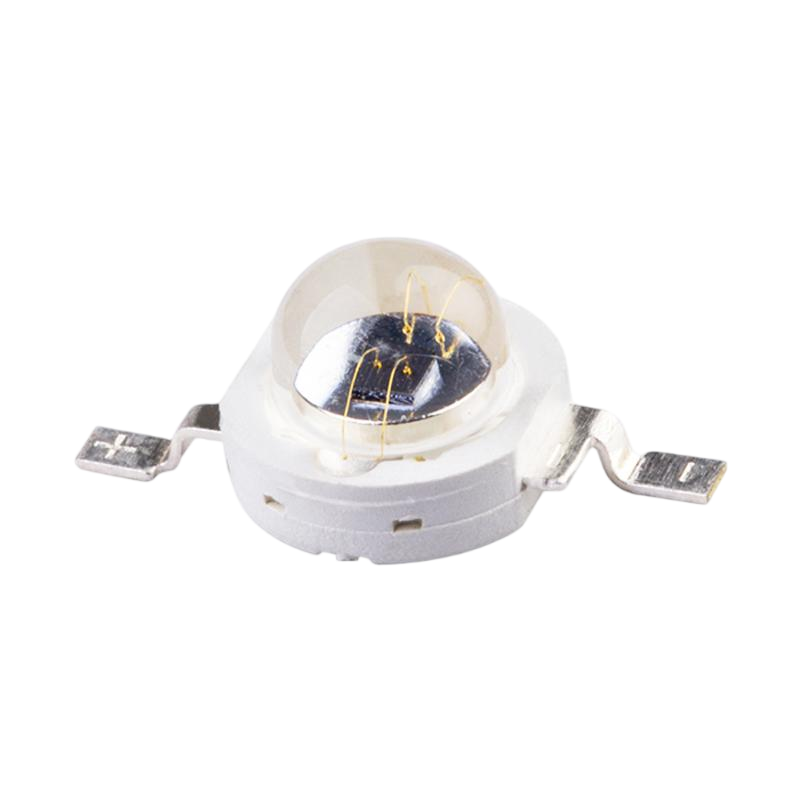

1W IR 820nm High Power LED
Product Model: WL-P1EP4242IR140-820
Features:
- 99.99% gold wire bonding, 1.2mil
- Red copper substrate
- Silicone Lens
- Epileds, 1pcs*42mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical and Scientific Instrument, Inspection, Surveillance Systems, Night Vision, Machine Vision and Industrial Application.
- Beam Angle: 60 degree and 140 degrees are available
- Type: The LED could mounted on Star PCB or ONLY emitter.
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.4 | --- | 1.6 | V | IF=350mA |
| Reverse Current | VR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 140 | --- | deg. | IF=350mA |
| Radiant Power | Po | 100 | --- | 200 | mW | IF=350mA |
| Peak Wavelength | λp | 815 | 820 | 825 | nm | IF=350mA |
