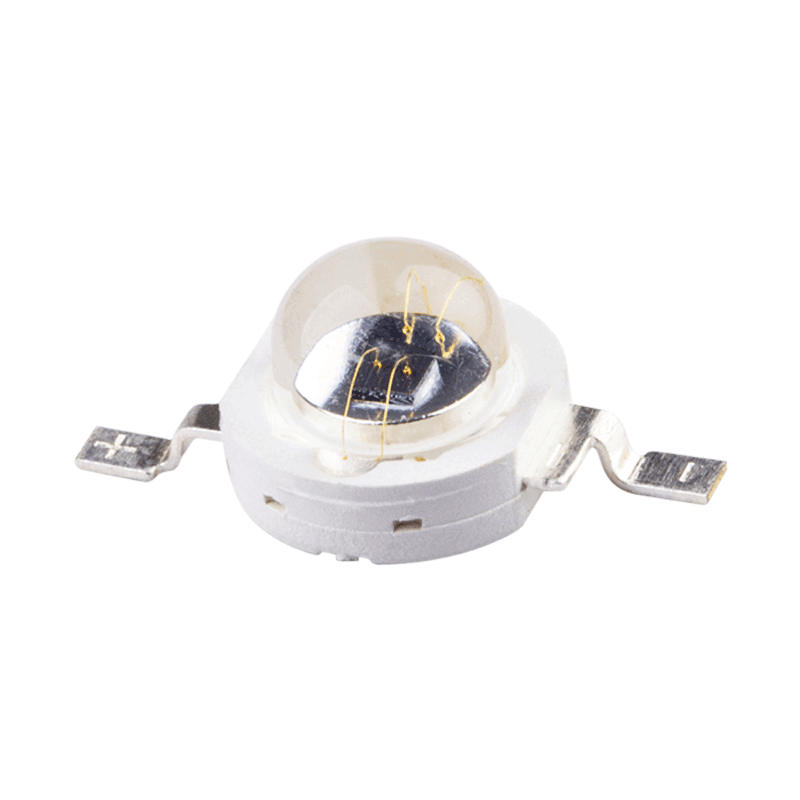

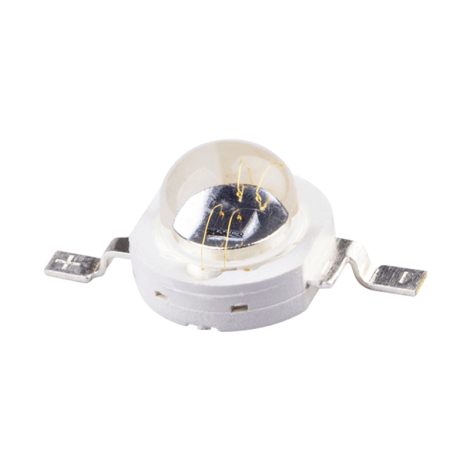

1W IR 830nm High Power LED
Features:
- 99.99% gold wire bonding, 1.2mil
- Red copper substrate
- Silicone Lens
- Epileds, 1pcs*42mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical and Scientific Instrument, Inspection, Iris and Face Recognition, other professional appliance.
- Beam Angle: 60 degree and 120 degrees are available
- Type: The LED could mounted on Star PCB or ONLY emitter.
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.5 | --- | 1.8 | V | IF=350mA |
| Reverse Current | VR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 140 | --- | deg. | IF=350mA |
| Radiant Power | Po | 100 | --- | 150 | mW | IF=350mA |
| Peak Wavelength | λp | 825 | 830 | 835 | nm | IF=350mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
