440nm 5W SMD5050 Royal Blue High Power LED
Product Model: WL-5P5050EP120RB-440
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate
- Silicone Lens
- Epileds, 4pcs * 45mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical Instrument, Aquarium lighting, horticultural lighting and other professional or commercial lighting.
- Beam Angle: 60 degrees and 120 degrees, 180 degree - Flat lens (without dome lens)
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
- The connection is available for 1 in series, 1 parallel and also 2 in series, 2 in parallel.

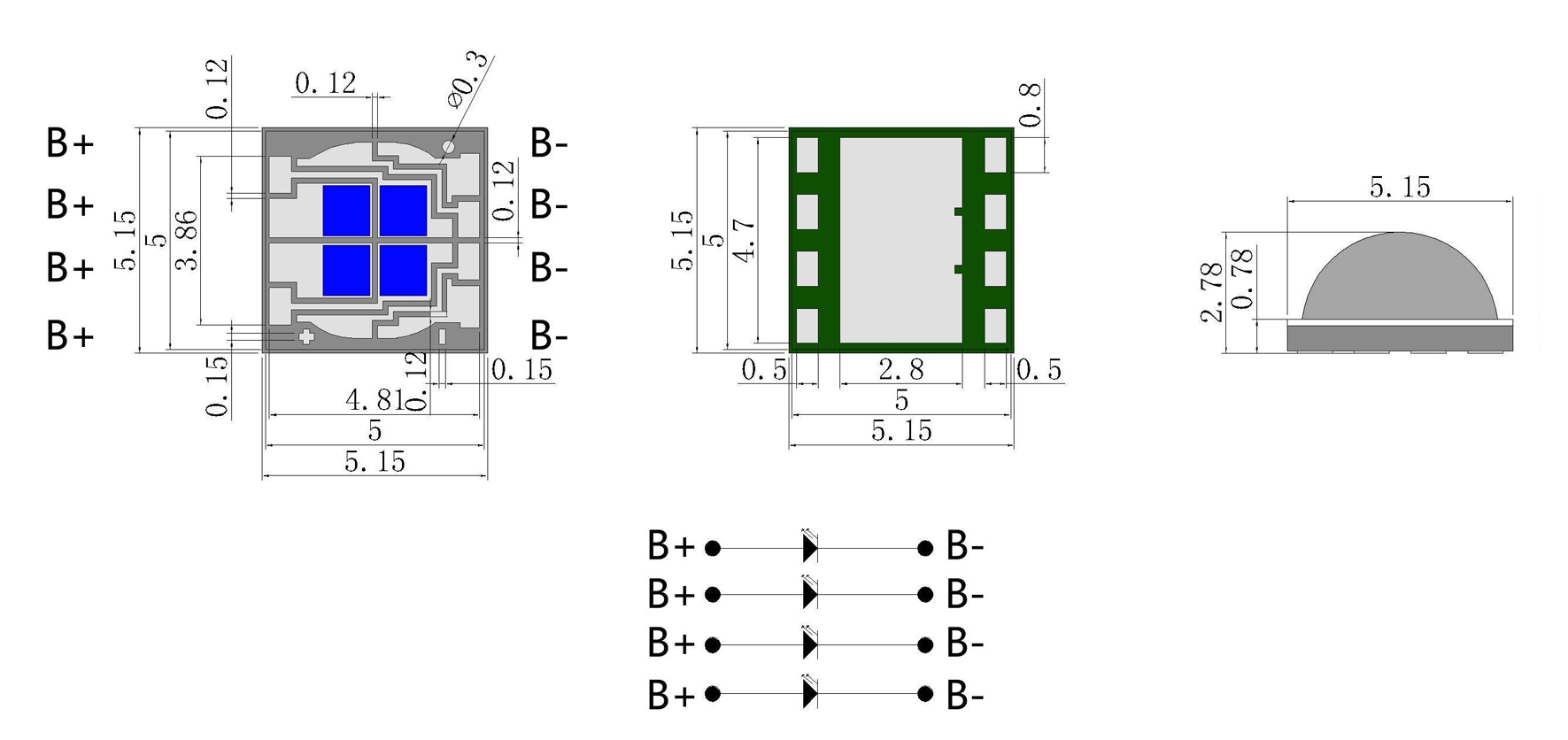

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 3.0 | 3.2 | 3.4 | V | IF=700mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=700mA |
| Luminous Flux | Φ | 30 | --- | 40 | lm | IF=700mA |
| Peak Wavelength | λp | 440 | 442.5 | 445 | nm | IF=700mA |
