540nm 5W SMD5050 Yellow Green High Power LED
Product Model: WL-5P5050EP120YG-540
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate
- Epoxy resin lens
- Bridgelux, 4pcs * 45mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical Instrument, Aquarium lighting, horticultural lighting and other professional or commercial lighting.
- Beam Angle: 60 degree，120 degrees and 180 degree - Flat lens (without dome lens) are all available
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
- The connection is available for 1 in series, 4 in parallel and also 2 in series, 2 in parallel.

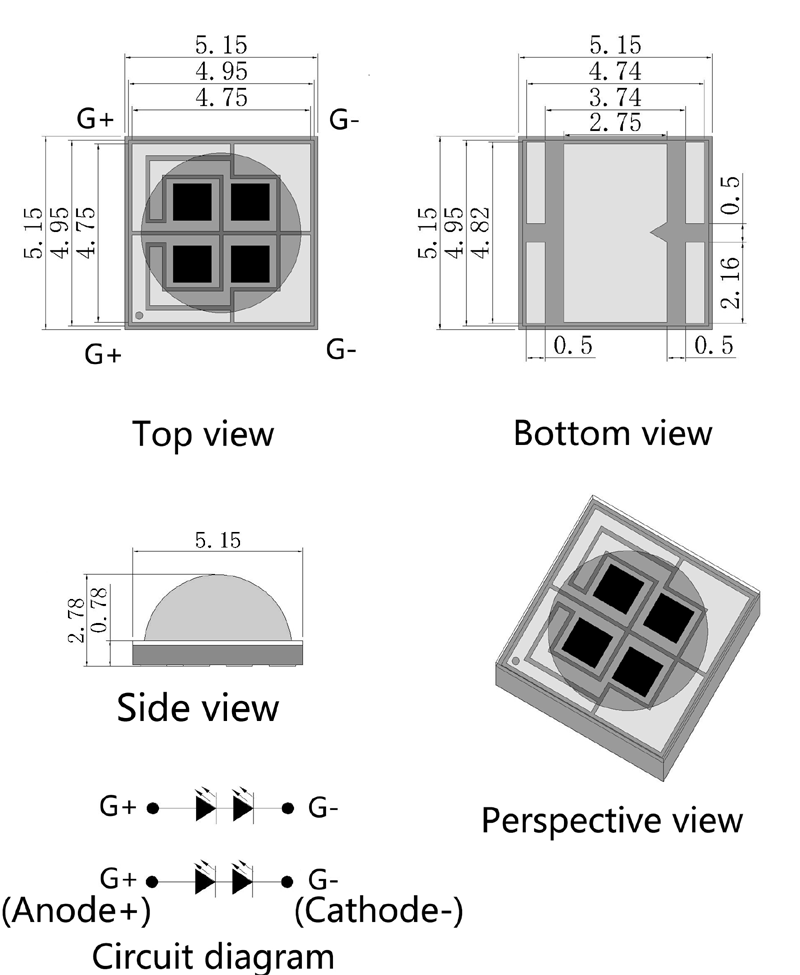

- Package Dimensions (mm):
- Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Forward Voltage | VF | 5.0 | --- | 6.0 | V | IF=700mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=700mA |
| Luminous Flux | Φ | 200 | --- | 300 | lm | IF=700mA |
| Peak Wavelength | λp | 535 | 540 | 545 | nm | IF=700mA |
