SMD2835 0.2W 0.5W 620nm Custom Red LED for Red Therapy Light
Features:
- 99.99% gold wire bonding
- Meet CE, ROHS Compliant
- Applications: Skin Health and Rejuvenation, Pain Relief and Muscle Recovery, Anti-inflammatory Treatment, Wound Healing Acceleration, Hair Growth Stimulation, Facial Beauty Devices, Home-use Therapy Equipment, Veterinary Treatment Applications.
- The Red wavelengths is available from 620nm to 690nm.
- Beam Angle: 120 degrees
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

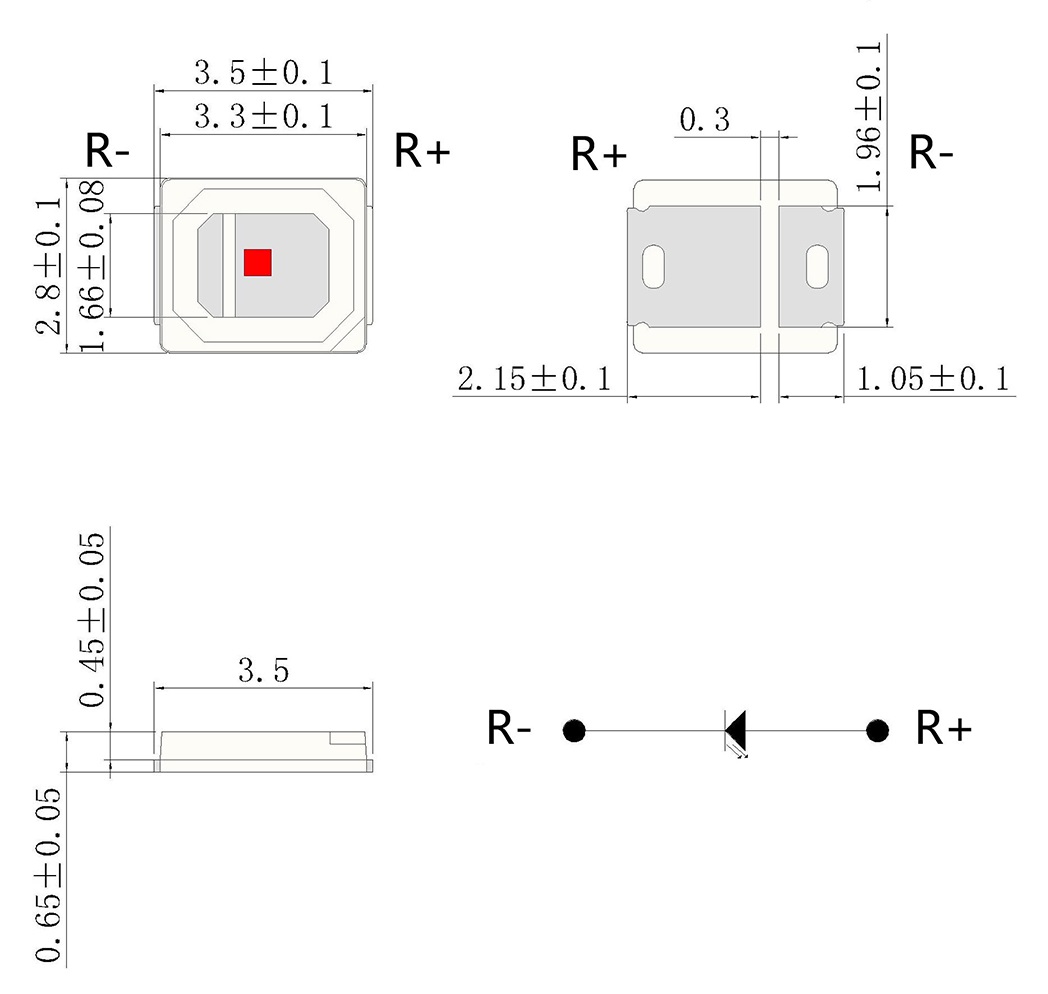

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 2.0 | --- | 2.4 | V | IF=150mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=150mA |
| Luminous Flux | Φ | 10 | --- | 15 | lm | IF=150mA |
| Peak Wavelength | λp | 615 | 620 | 625 | nm | IF=150mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
