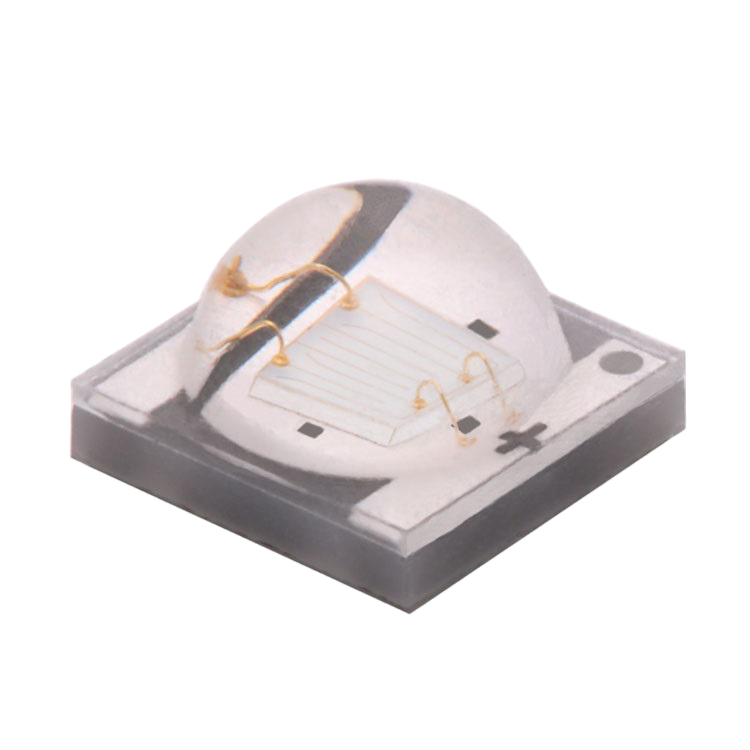

365nm SMD3535 3W High Power LED
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate
- Silicone Lens
- Epileds, 1pcs*45mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical Instruments, 3D Printing, UVIVF (UV Photography), Insect Control, Scientific Instruments and other professional application.
- Beam Angle: 30°, 60°, 90°, 120° and Flat lens (without dome lens) are all available.
- Packaging Type: SMD2835, SMD3030, SMD3535, SMD5050, SMD7070 and SMD9090 are all available
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Foward Voltage | VF | 3.2 | 3.4 | 3.6 | V | IF=700mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=700mA |
| Radiant Power | Po | 800 | --- | 1200 | mW | IF=700mA |
| Peak Wavelength | λp | 365 | 367.5 | 370 | nm | IF=700mA |
Product Documents
Download datasheets and spectrum test reports.
Product Datasheets
Spectrum Test Reports
note： If the required document is not available, please contact us.
