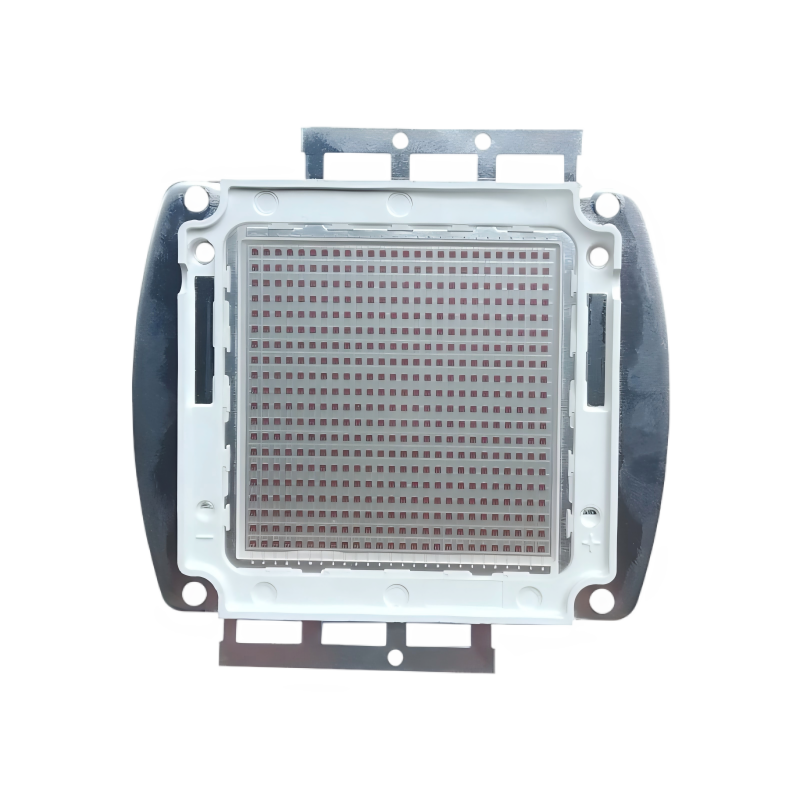

300W Hyper Red 690nm High Power LED
Features:
- 99.99% gold wire bonding, 1.5mil
- Red copper substrate
- Epileds, 300pcs * 42mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical Instrument, horticultural lighting, Industrial Usage, Scientific Instrument and Sensoring.
- Substrate Type: Oval
- The wattage could be customized, 150W, 200W, 300W, 400W and 500W are all available.
- Die connection is available for 15 in series, 20 in parallel and 20 in series, 15 in parallel.
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 30.0 | 33.0 | 36.0 | V | IF=7000mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 140 | --- | deg. | IF=7000mA |
| Luminous Flux | Φ | 2000 | --- | 3000 | lm | IF=7000mA |
| Peak Wavelength | λp | 685 | 690 | 695 | nm | IF=7000mA |
