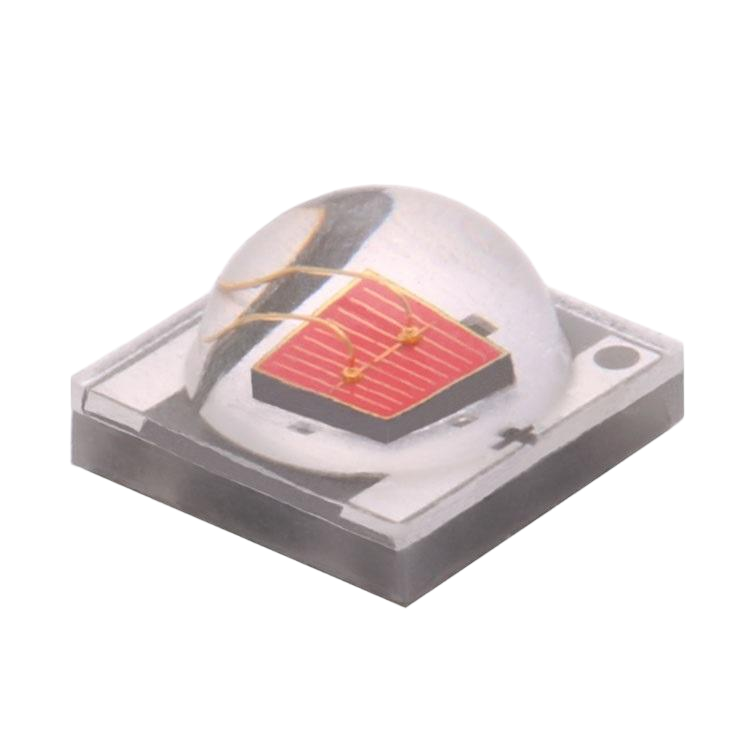

690nm 1W 3W SMD3535 Hyper Red High Power LED
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate
- Silicone Lens
- Epileds/Epistar, 1pcs * 42mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical Instrument, horticultural lighting, Industrial Usage, Scientific Instrument and Sensoring.
- Beam Angle: 60 degree, 120 degrees and 180 degree - Flat lens (without dome lens) are all available
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 2.0 | 2.2 | 2.4 | V | IF=700mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=700mA |
| Luminous Flux | Φ | 15 | --- | 25 | lm | IF=700mA |
| Peak Wavelength | λp | 685 | 690 | 695 | nm | IF=700mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
