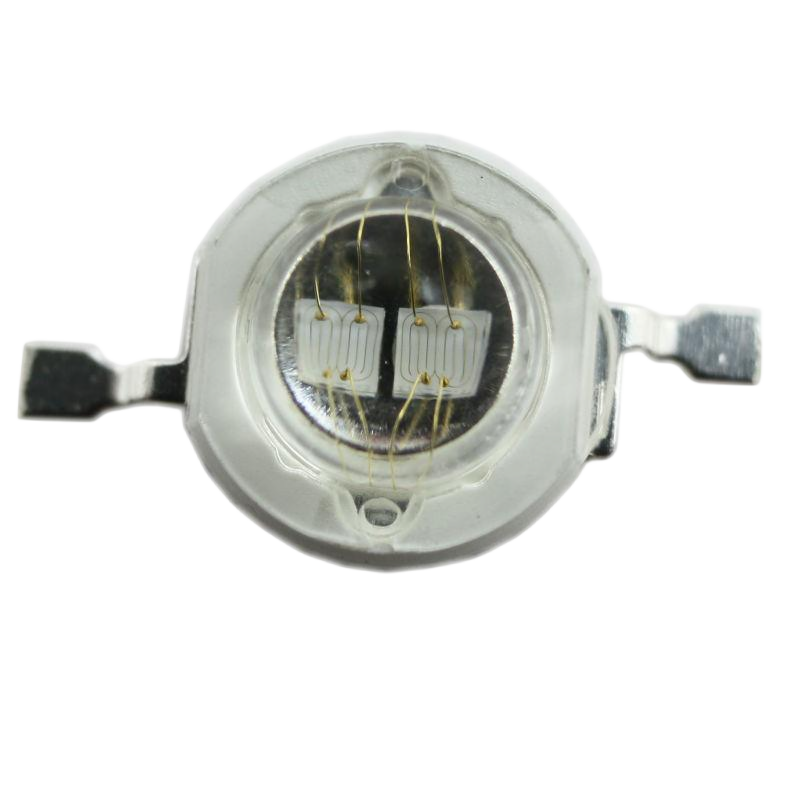

3W Royal Blue 440nm High Power LED
Product Model: WL-P3EP4545RB140-440
Features:
- 99.99% gold wire bonding, 1.2mil
- Red copper substrate
- Silicone Lens
- Epileds, 2pcs * 45mil Chips
- Meet CE, ROHS Compliant
- Applications: Health Care Equipment, Aquarium lighting, horicultural lighting and other professional or commercial lighting.
- Beam Angle: 60 degree and 120 degrees are available
- Type: The LED could mounted on Star PCB or ONLY emitter.
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 3.0 | --- | 3.4 | V | IF=700mA |
| Reverse Current | VR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 140 | --- | deg. | IF=700mA |
| Luminous Flux | Φ | 15 | --- | 25 | lm | IF=700mA |
| Peak Wavelength | λp | 440 | 442.5 | 445 | nm | IF=700mA |
