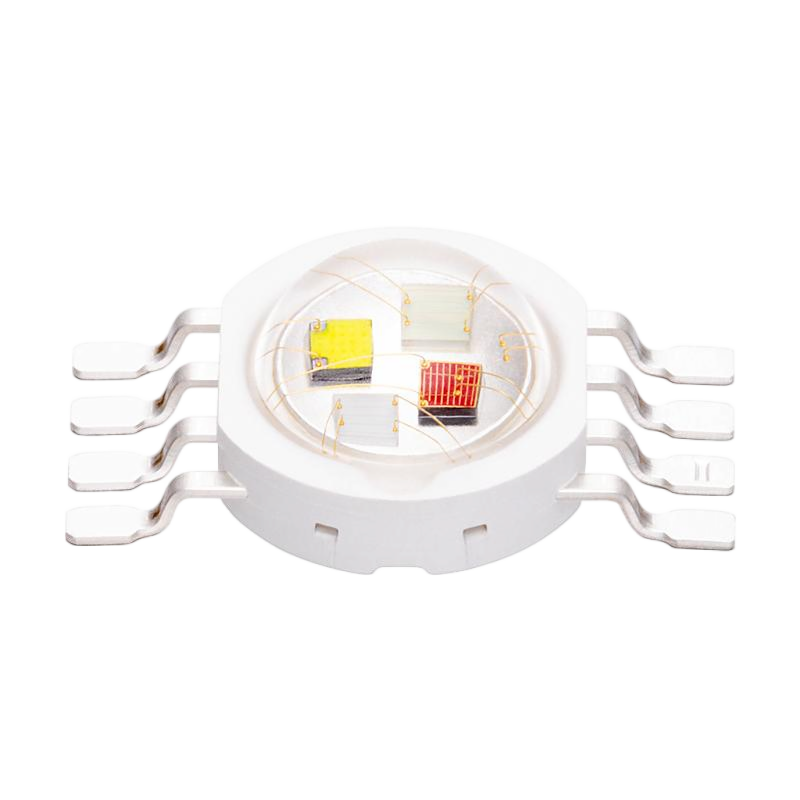

4 in 1 Custom RGBW 12W High Power LED
Features:
- 99.99% gold wire bonding, 1.2mil
- Red copper substrate
- Meet CE, ROHS Compliant
- Applications: Flashlight, stage light, disco light, Garden light and other commercial lighting.
- Beam Angle: 140 degrees
- Available Color Temperature: 2700K-3200K, 4000K-5000K, 5000-6000K, 6000K-7000K, 8000K, 10000K, 12000K, 14000K, 15000K, 16000K, 18000K, 20000K, 25000K
- The package also could be built with other available wavelength/Colors (The wavelength is available from 365nm-1050nm). We offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Absolute Maximum Rating @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
|---|---|---|---|
| Continous Forward Current | IF | 700 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 1000 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 3 | W |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +85°C | °C |
| Storage Temperature | TSTG | -35°C to +105°C | °C |
| Lead Soldering Temperature | TSOL | 360°C | °C |
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
| Forward Voltage | VF | Red | 2.0 | 2.4 | V | IF=700mA | |
| Green | 3.0 | 3.4 | V | IF=700mA | |||
| Blue | 3.0 | 3.4 | V | IF=700mA | |||
| White | 3.0 | 3.4 | V | IF=700mA | |||
| Reverse Current | IR | 10 | μA | VR=5V | |||
| Viewing Angle | 2θ1/2 | 140 | deg | IF=700mA | |||
| Luminous Flux | Φ | Red | 80 | 120 | lm | IF=700mA | |
| Green | 120 | 160 | lm | IF=700mA | |||
| Blue | 40 | 50 | lm | IF=700mA | |||
| White | 180 | 250 | lm | IF=700mA | |||
| Peak Wavelength | λp | Red | 630 | 635 | nm | IF=700mA | |
| Green | 510 | 515 | nm | IF=700mA | |||
| Blue | 455 | 460 | nm | IF=700mA | |||
| White | 6000 | K | IF=700mA |
