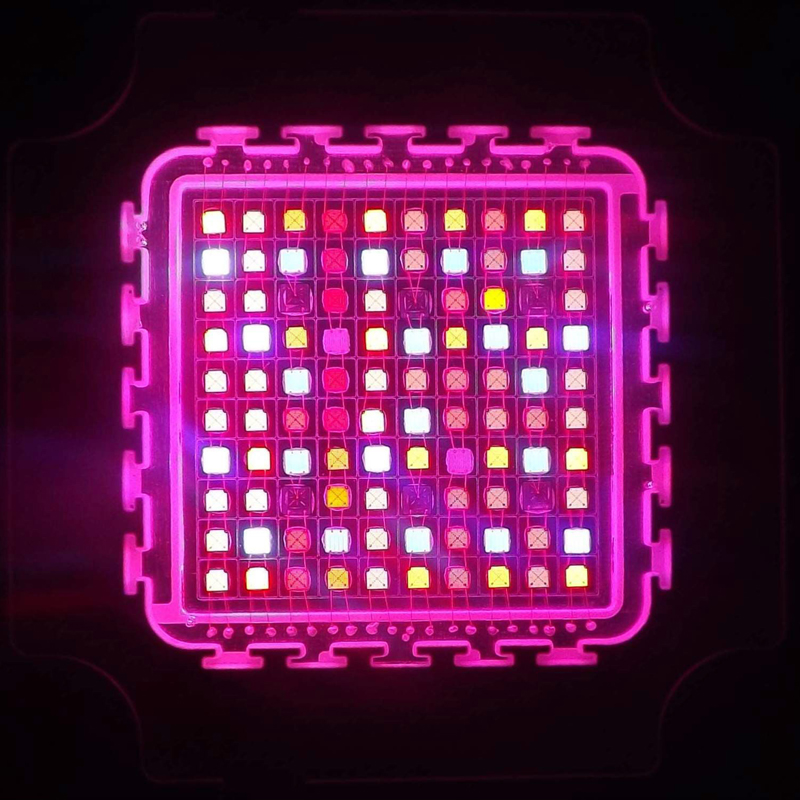

Custom 100W High Power LED for Plants Growing Light
Features:
- 99.99% gold wire bonding, 1.2mil
- Red copper substrate
- Meet CE, ROHS Compliant
- Applications: Horticulture (Plants Growing Light)
- Beam Angle: 140 degrees
- Available Color Temperature: 2700K-3200K, 4000K-5000K, 5000-6000K, 6000K-7000K, 8000K, 10000K, 12000K, 14000K, 15000K, 16000K, 18000K, 20000K, 25000K
- The LED combination is customized, which could be built with the available wavelength/Colors ranged from 365nm-1050nm. We offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 20 | --- | 26 | V | IF=3500mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 140 | --- | deg. | IF=3500mA |
| Luminous Flux | Φ | 4000 | --- | 8000 | lm | IF=3500mA |
| Peak Wavelength | λp | 430 | 730 | nm | IF=3500mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
