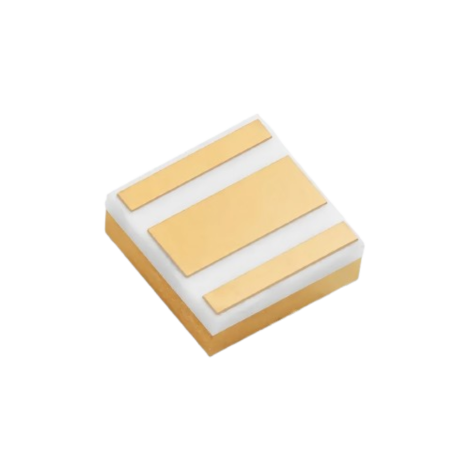

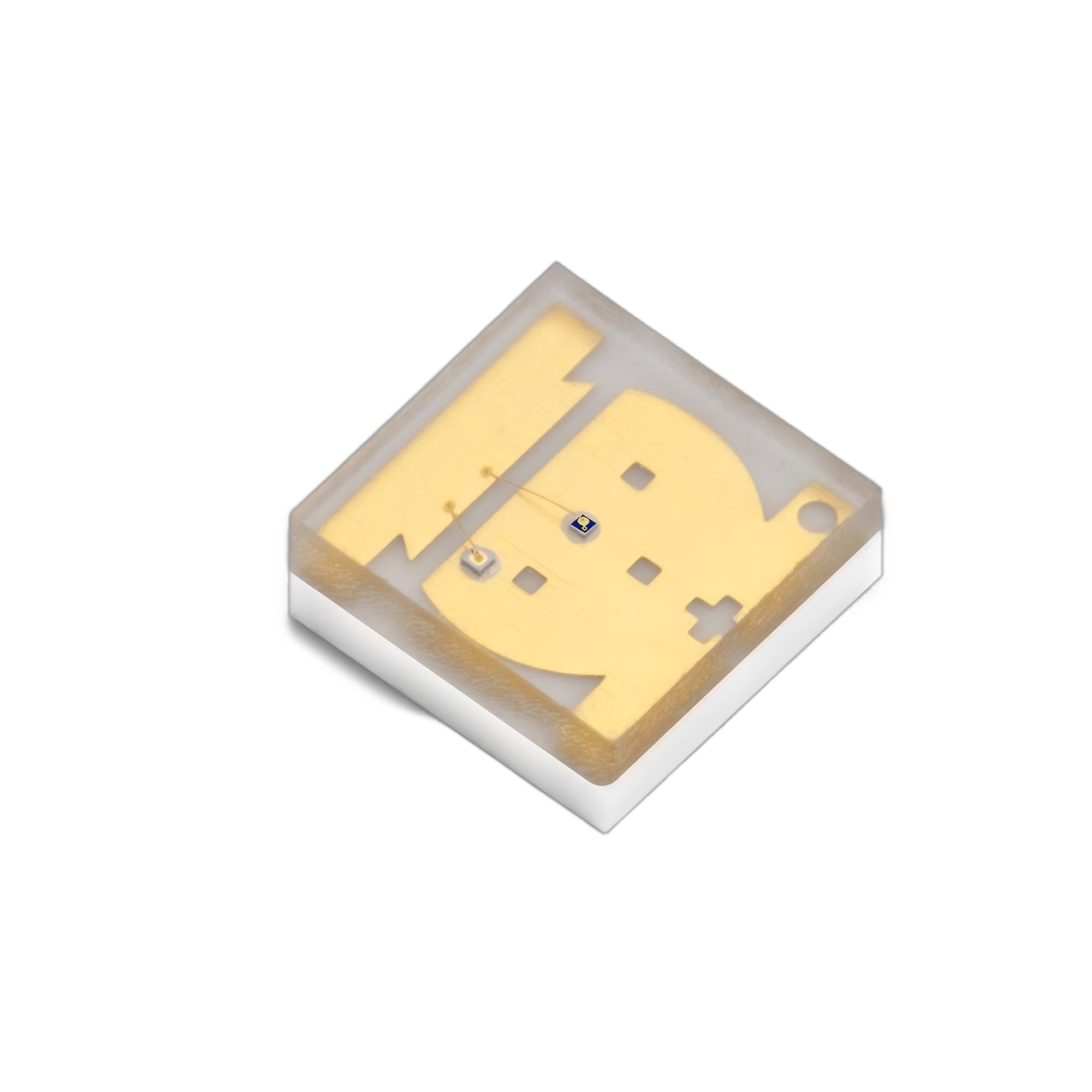

850nm VCSEL Laser SMD3535 IR LED
Features:
- 99.99% gold wire bonding
- Meet CE, ROHS Compliant
- Applications: Automotive Night Vision, Surveillance Night Vision, Consumer 3D Sensing (Face ID), Driver Monitoring Systems, Short-Range LiDAR, Drone Obstacle Avoidance.
- 100% Quality Assurance
- The wavelengths is available for 660nm, 808nm, 850nm, 940nm, 980nm, 1064nm...
- We focus on custom LED design, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

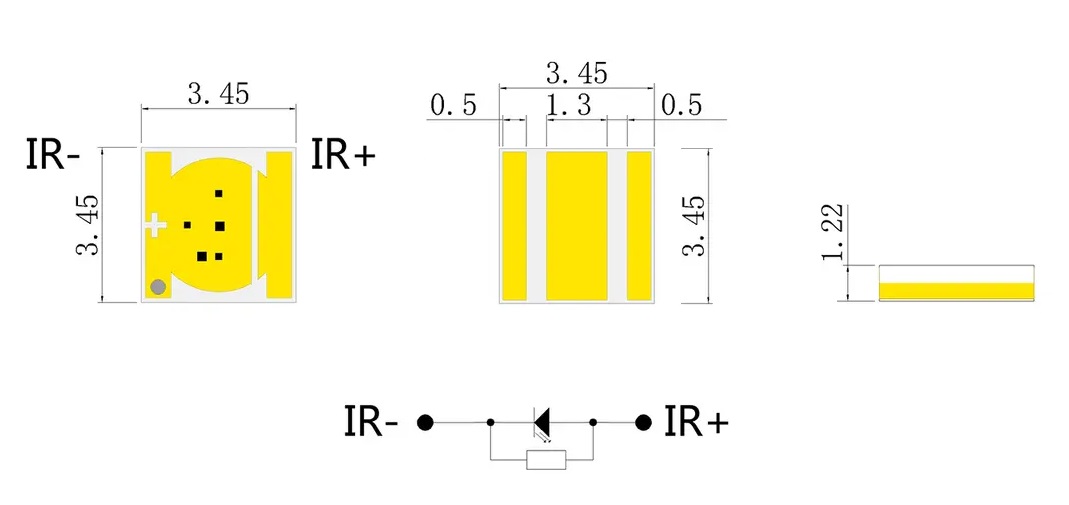

Package Dimensions (mm):
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | IR | 1.9 | 2.3 | V | IF=7mA | |
| Viewing Angle | 2θ1/2 | IR | 17 | 20 | 23 | deg | IF=7mA |
| Radiant Power | Po | IR | 5 | 6 | mW | IF=7mA | |
| Peak Wavelength | λp | IR | 840 | 850 | 860 | nm | IF=7mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
