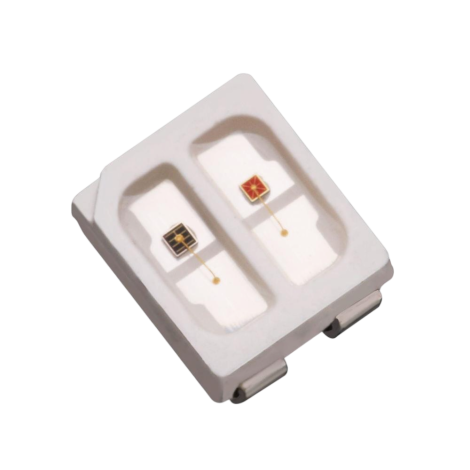

Custom 0.2W 0.5W SMD3528 Dual Colors LED

Product Model: WL-02P3528EP120RIR-620-860

Features:

  • 99.99% gold wire bonding
  • Meet CE, ROHS Compliant
  • Applications: Red LED therapy Light
  • 100% Quality Assurance
  • The wavelengths is available from 365nm to1600nm could be customized and integrated in one package.
  • We could provide custom multi-color configuration, if you need any support, please contact us.



Package Dimensions (mm):

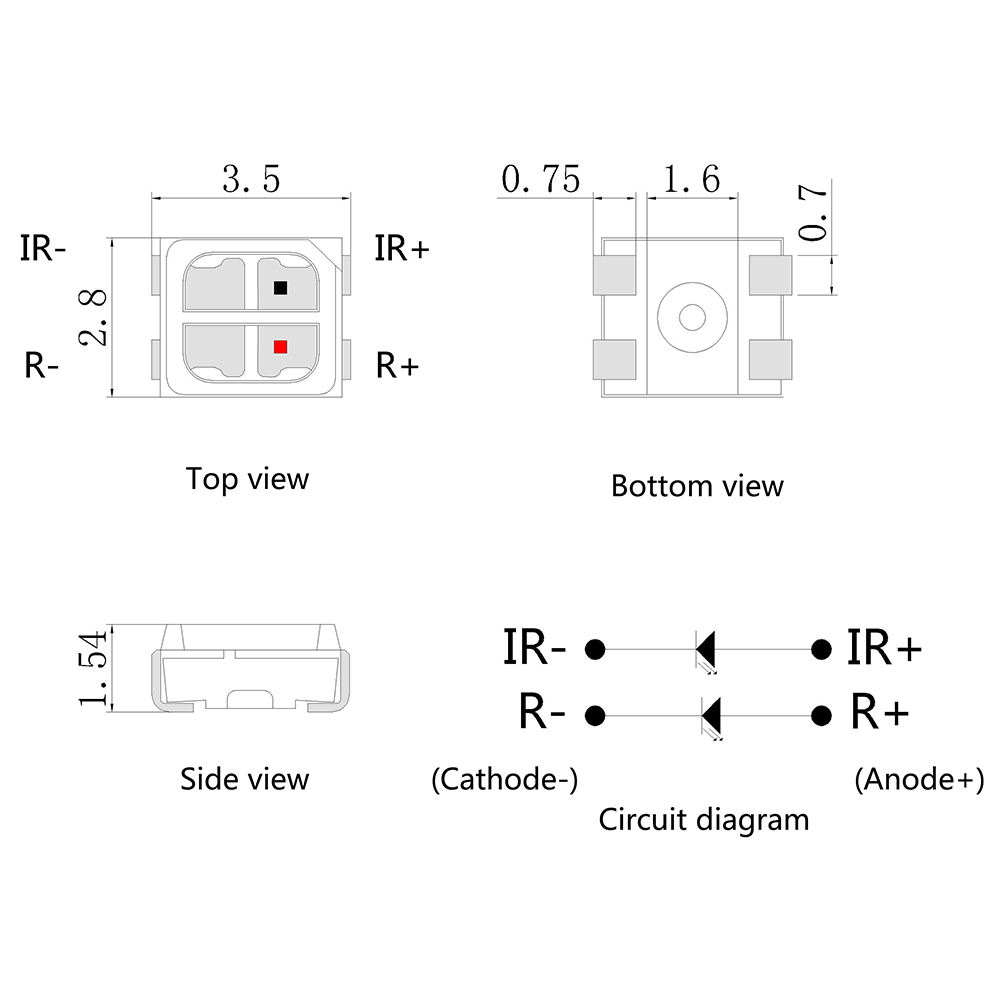

Custom 0.2W 0.5W SMD3528 Dual Colors LED Module Package Dimensions



Absolute Maximum Rating @ Ta=25°C


Parameter Symbol Maximum Rating Unit
Continous Forward Current IF 20 mA
Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) IFp 40 mA
Reverse Voltage VR 5 V
Power Dissipation PD 0.2 W
Electrostatic Discharge ESD 1000 V
Operating Temperature TOPR -25°C to +85°C °C
Storage Temperature TSTG -35°C to +105°C °C
Lead Soldering Temperature TSOL 360°C °C


Electrical Optical Characteristic @ Ta=25°C


Parameter Symbol Color Min. Typ. Max. Unit Test Condition
Forward Voltage VF IR 2.0 2.2 V IF=20mA
IR 1.2 1.4 V IF=20mA
Reverse Current IR 10 μA VR=5V
Viewing Angle 2θ1/2 180 deg IF=20mA
Luminous Flux Φ R 2 4 lm IF=20mA
IR 5 10 mW IF=20mA
Wavelengths  λp IR 620 625 nm IF=20mA
IR 850 860 nm IF=20mA
