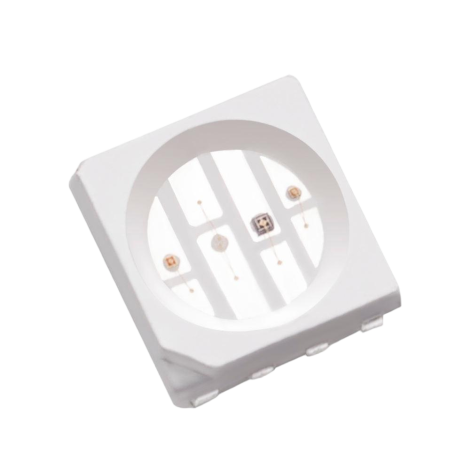

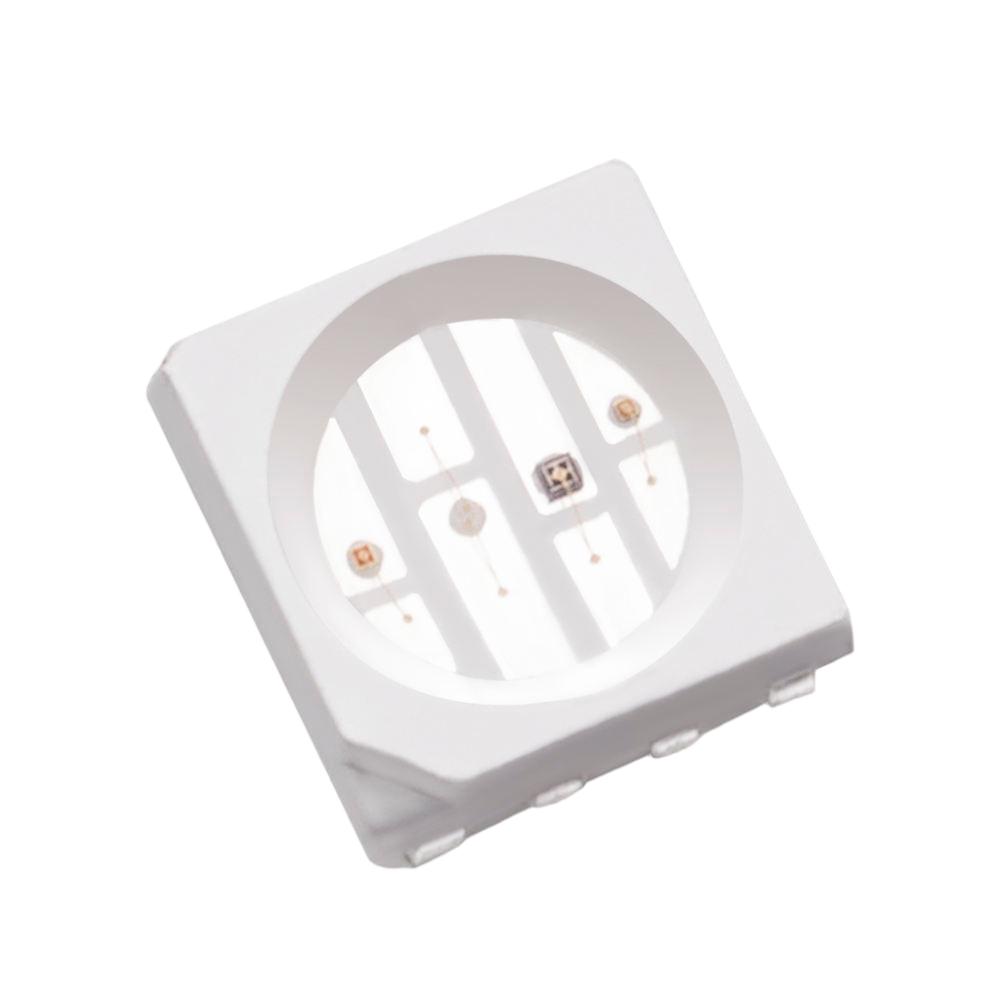

Custom SMD5054 0.2W 0.5W Multi-color LED
Features:
- 99.99% gold wire bonding
- Meet CE, ROHS Compliant
- Applications: Red LED therapy Light or other professional application.
- 100% Quality Assurance
- The wavelengths is available from 365nm to1600nm.
- We focus on custom LED design, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

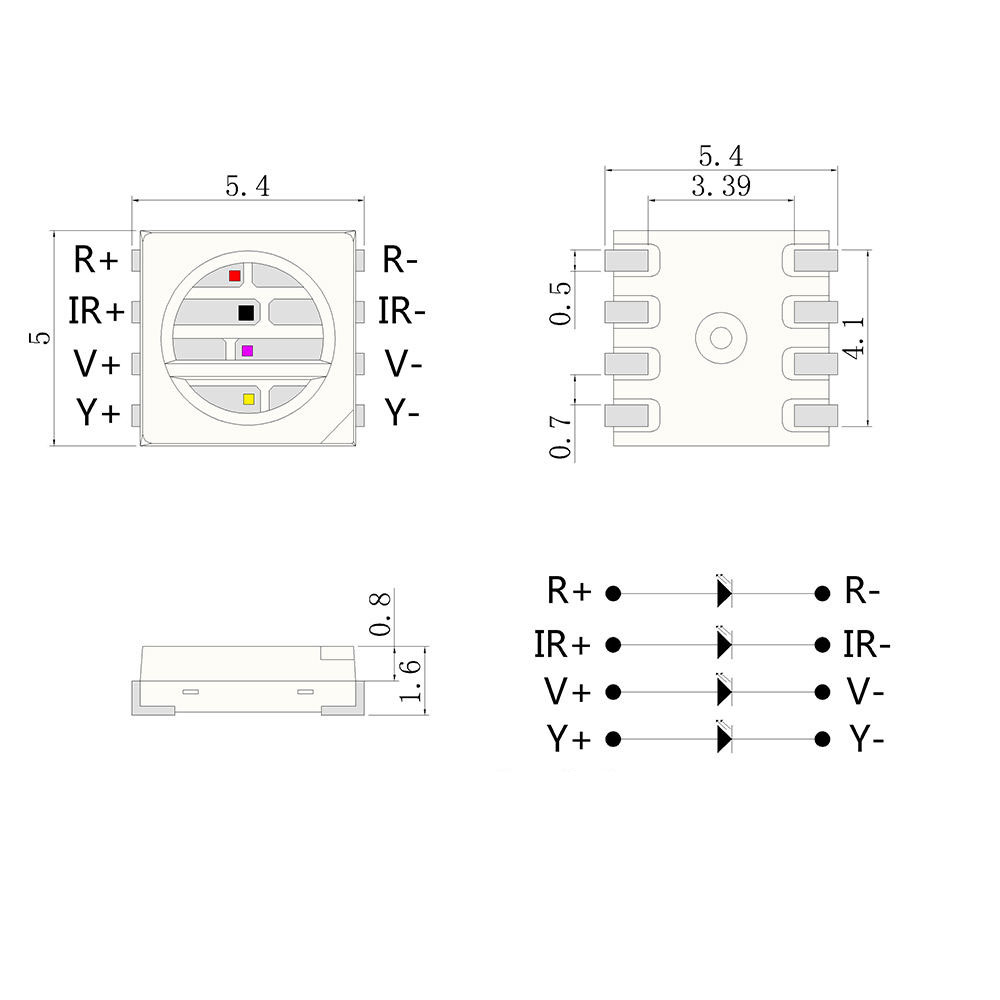

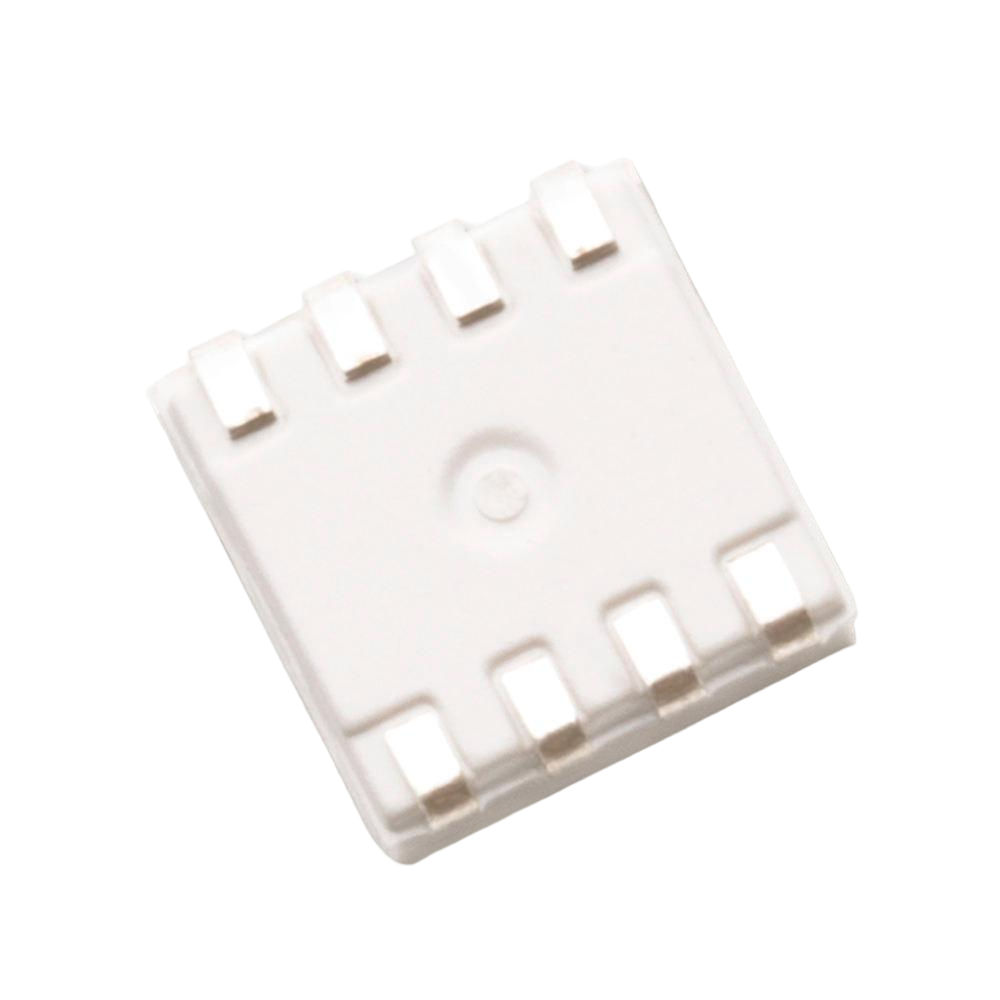

Package Dimensions (mm):
Absolute Maximum Rating @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
|---|---|---|---|
| Continous Forward Current | IF | 20 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 50 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 20 | mW |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +85°C | °C |
| Storage Temperature | TSTG | -35°C to +105°C | °C |
| Lead Soldering Temperature | TSOL | 360°C | °C |
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | Red | 2.0 | 2.4 | V | IF=20mA | |
| IR | 1.2 | 1.4 | V | IF=20mA | |||
| UV | 3.0 | 3.4 | V | IF=20mA | |||
| Yellow | 2.0 | 2.4 | V | IF=20mA | |||
| Reverse Current | IR | 10 | μA | VR=5V | |||
| Viewing Angle | 2θ1/2 | 120 | deg | IF=20mA | |||
| Luminous Flux | Φ | Red | 8 | 13 | mW | IF=20mA | |
| IR | 5 | 10 | mW | IF=20mA | |||
| UV | 10 | 15 | mW | IF=20mA | |||
| Yellow | 3 | 7 | lm | IF=20mA | |||
| Dominant Wavelength | λp | Red | 620 | 622.5 | 625 | nm | IF=20mA |
| IR | 830 | 833.5 | 835 | nm | IF=20mA | ||
| UV | 415 | 417.5 | 420 | nm | IF=20mA | ||
| Yellow | 585 | 587.5 | 590 | nm | IF=20mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
