Custom VCSEL Laser Multi-color SMD5050 LED
Features:
- 99.99% gold wire bonding
- Meet CE, ROHS Compliant
- Applications: Medical Therapy, Gesture Sensors, Facial Recognition, 3D Sensing, Machine Visions, Lidar and Industrial Distance Measurement.
- 100% Quality Assurance
- This package integrates chips operating at multiple wavelengths, including 660nm, 850nm, 940nm and 1064nm.(Wavelength can be customized)
- We focus on custom LED design, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

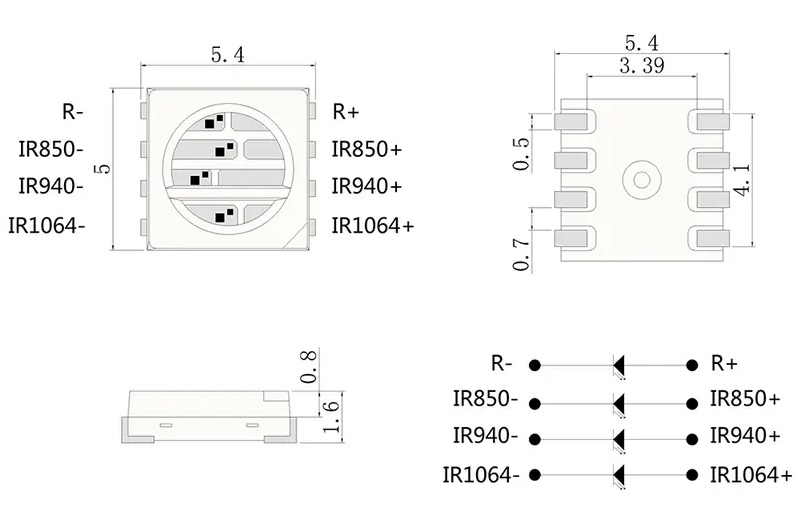

Package Dimensions (mm):
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | Red | 2.1 | 2.5 | V | IF=25mA | |
| IR | 1.9 | 2.3 | V | IF=7mA | |||
| IR | 1.7 | 2.0 | V | IF=7mA | |||
| IR | 2.0 | V | IF=25mA | ||||
| Viewing Angle | 2θ1/2 | R | 20 | deg | IF=25mA | ||
| IR | 17 | 20 | 23 | deg | IF=7mA | ||
| IR | 18 | 21 | 24 | deg | IF=7mA | ||
| IR | 21 | deg | IF=25mA | ||||
| Radiant Power | Po | Red | 15 | 18 | 22 | mW | IF=25mA |
| IR | 5 | 6 | mW | IF=7mA | |||
| IR | 5 | 6 | mW | IF=7mA | |||
| IR | 9 | 20 | mW | IF=25mA | |||
| Peak Wavelength | λp | Red | 650 | 660 | 670 | nm | IF=25mA |
| IR | 840 | 850 | 860 | nm | IF=7mA | ||
| IR | 930 | 940 | 950 | nm | IF=7mA | ||
| IR | 1060 | 1064 | nm | IF=25mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
