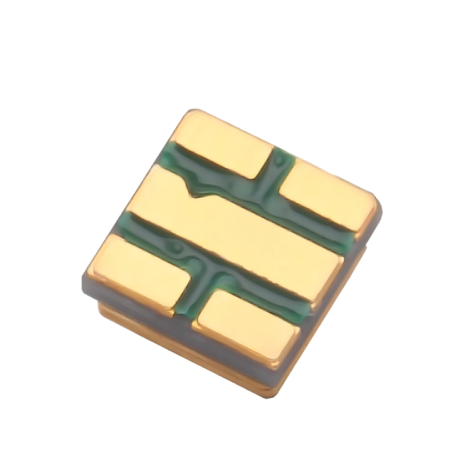

Custom UVC+UVA 275+395nm 3535 LED for Medical and Disinfection
Product Model: WL-02P3535UVC120-U275-395
Features:
- Ceramic substrate, Quartz lens
- Meet CE, ROHS Compliance
- Applications: Personal hygiene, Water disinfection, Portable devices, Air disinfection, Surface disinfection
- Abvailable Beam Angle: 120°
- Packaging Size: 3535 (3.5x3.5mm)
- The UVC wavelengths is available from 250nm to 285nm .
- Custom Solution: We provide custom UVB+UVC solutions, if you need any support, please contact us.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | UVC | 6 | 8 | 10 | V | IF=40mA |
| UVA | 3.0 | 3.2 | 3.4 | V | IF=40mA | ||
| Radiant Power | Po | UVC | 5 | 8 | 10 | mW | IF=40mA |
| UVA | 20 | 30 | 40 | mW | IF=40mA | ||
| Peak Wavelength | λp | UVC | 270 | 275 | 285 | nm | IF=40mA |
| UVA | 395 | 397.5 | 400 | nm | IF=40mA | ||
| Reverse Current | IR | UVC | --- | --- | 3 | μA | VR=5V |
| UVA | --- | --- | 3 | μA | VR=5V | ||
| Viewing Angle | 2θ1/2 | UVC | --- | 120 | --- | deg | IF=40mA |
| UVA | --- | 120 | --- | deg | IF=40mA |
