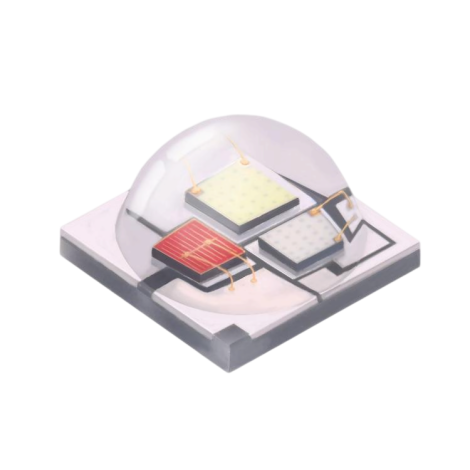

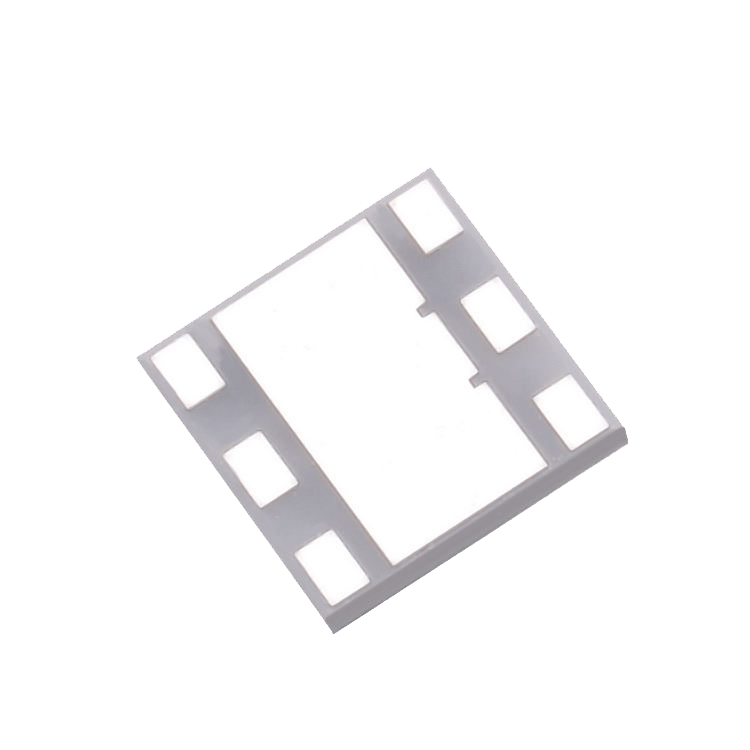

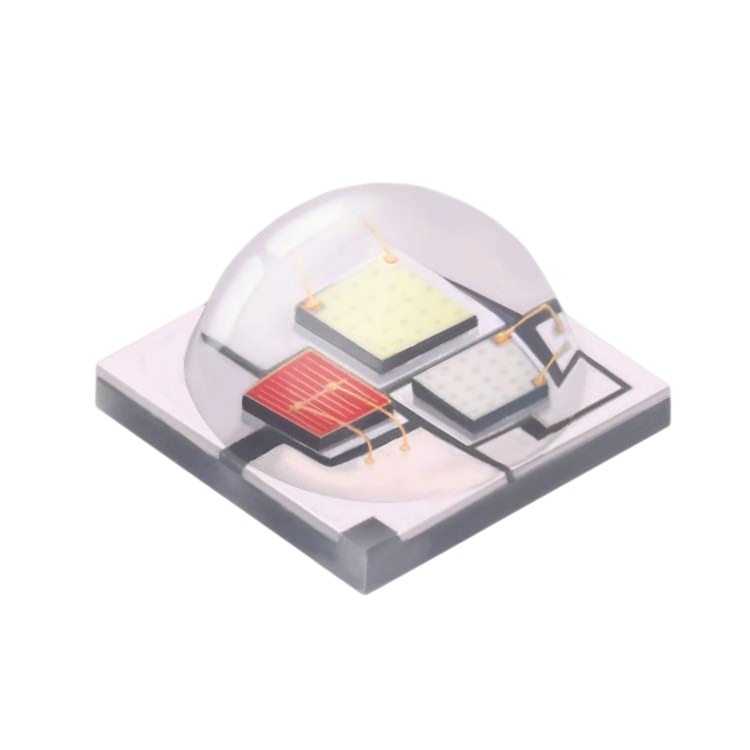

SMD5050 3W RGB High Power LED
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate
- Meet CE, ROHS Compliant
- Applications: Flashlight, stage light, disco light, Garden light and other commercial lighting.
- Available Beam Angle: 60 degrees and 120 degrees, 180 degree - Flat lens (without dome lens)
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
- Available Color Temperature: 2700K-3200K, 4000K-5000K, 5000-6000K, 6000K-7000K, 8000K
- The package also could be customized with other available wavelength/colors (The wavelength is available from 365nm-1050nm). We offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Absolute Maximum Rating @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
|---|---|---|---|
| Continous Forward Current | IF | 350 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 500 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 1000 | mW |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +85°C | °C |
| Storage Temperature | TSTG | -35°C to +105°C | °C |
| Lead Soldering Temperature | TSOL | 360°C | °C |
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | Red | 2.0 | 2.4 | V | IF=350mA | |
| Green | 2.8 | 3.2 | V | IF=350mA | |||
| Blue | 3.0 | 3.4 | V | IF=350mA | |||
| Reverse Current | IR | 10 | μA | VR=5V | |||
| Viewing Angle | 2θ1/2 | 120 | deg | IF=350mA | |||
| Luminous Flux | Φ | Red | 40 | 60 | lm | IF=350mA | |
| Green | 60 | 80 | lm | IF=350mA | |||
| Blue | 15 | 20 | 25 | lm | IF=350mA | ||
| Peak Wavelength | λp | Red | 620 | 625 | nm | IF=350mA | |
| Green | 520 | 525 | nm | IF=350mA | |||
| Blue | 460 | 465 | nm | IF=350mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
