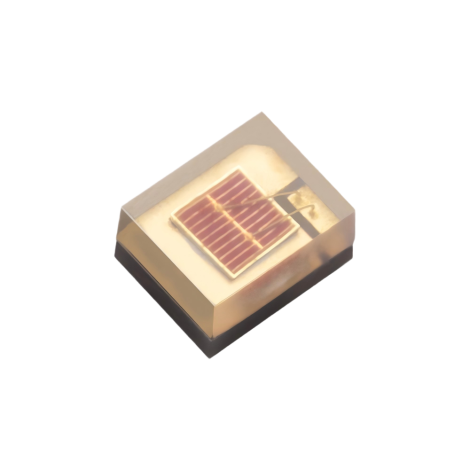

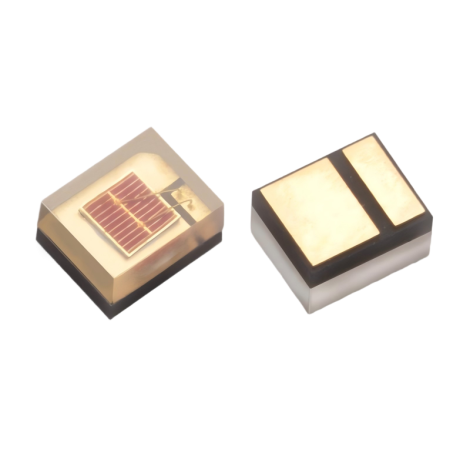

1070nm 1W 3W SMD2016 IR High Power LED
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic Substrate
- Epileds/Epistar, 1pcs * 42mil Chips
- Meet CE, ROHS Compliant
- Applications: Fiber Laser Pumping; Medical Aesthetic Devices; Industrial Material Processing; Infrared Illumination Systems; Scientific Research Instruments; Specialized Medical Therapy; Industrial Heating Systems.
- Beam Angle: 140 degrees
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535, SMD5050, SMD7070, SMD9090 are all available
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

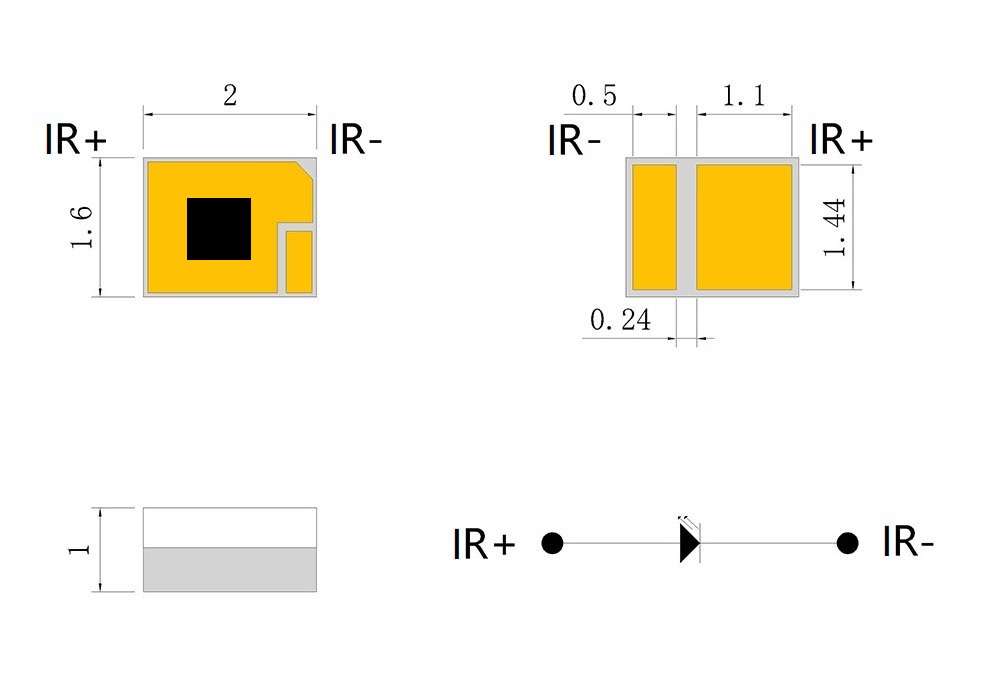

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.1 | 1.2 | V | IF=700mA | |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=700mA |
| Radiant Power | Po | 60 | 80 | mW | IF=700mA | |
| Peak Wavelength | λp | 1060 | 1070 | --- | nm | IF=700mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
