1070nm SMD5050 5W IR High Power LED
Product Model: WL-5P5050EP120IR-1070
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate
- Silicone Lens
- Epileds, 4pcs * 45mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical and Scientific Instrument, Inspection, Surveillance Systems, Night Vision, Machine Vision and Industrial Application.
- Beam Angle: 60 degree，120 degrees and 180 degree - Flat lens (without dome lens) are all available
- Packaging Type: 60°，120° and Flat lens (without dome lens) are all available
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
- Die connection is available for 1 in series, 1 in parallel and also 2 in series, 2 in parallel.

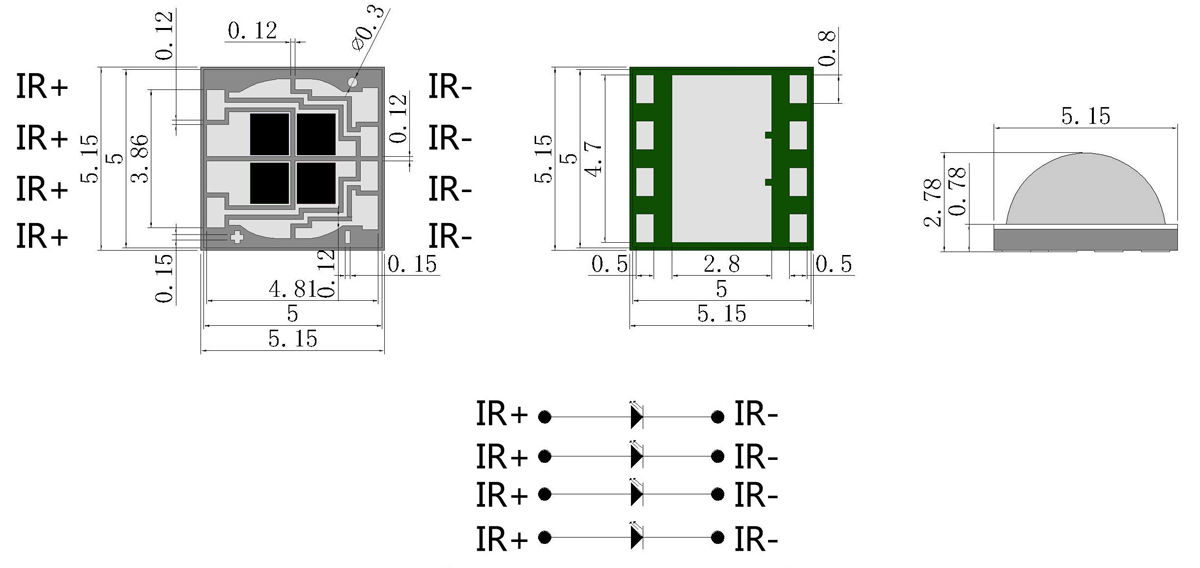

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.2 | --- | 1.4 | V | IF=700mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=700mA |
| Radiant Power | Po | 100 | --- | 150 | mW | IF=700mA |
| Peak Wavelength | λp | 1065 | 1070 | 1075 | nm | IF=700mA |
