300W Violet 430nm High Power LED
Product Model: WL-P300EP4545UV140-430
Features:
- 99.99% gold wire bonding, 1.5mil
- Red copper substrate
- Epileds, 300pcs * 45mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical Instruments, UV Curing, Algrea, Scientific Instruments and other professional instruments.
- Substrate Type: Oval
- Available power: 150W, 200W, 300W, 400W and 500W.
- Dies/chips connection is available for 20 in series, 15 in series or 15 in series, 20 in parallel.
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.

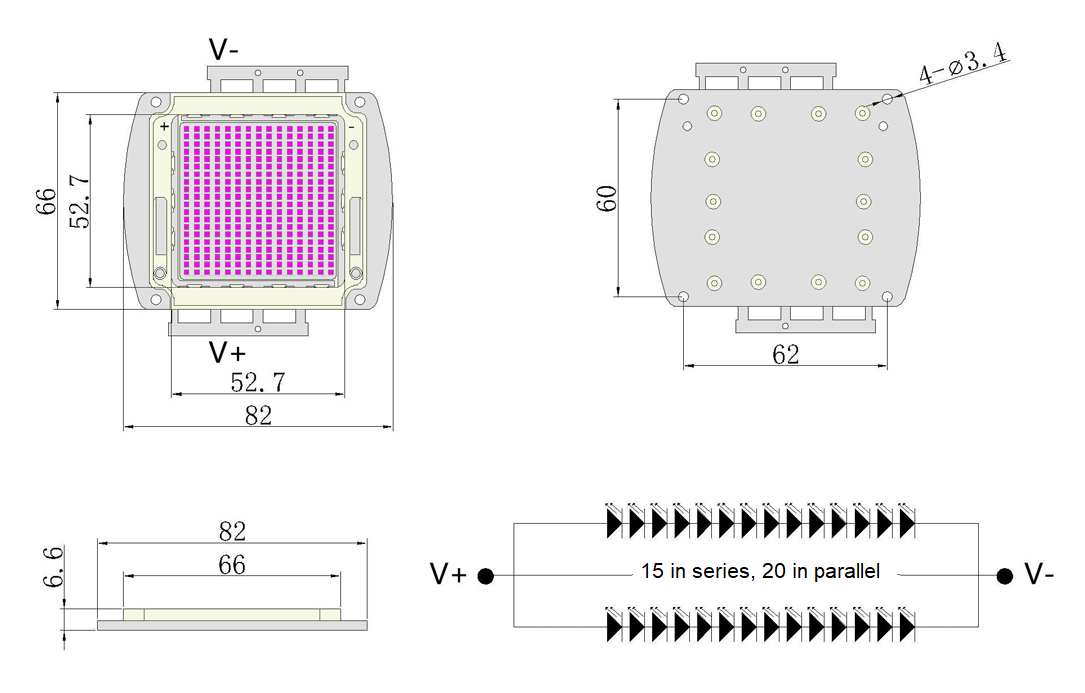

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 60.0 | 64.0 | 68.0 | V | IF=5250mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 140 | --- | deg. | IF=5250mA |
| Radiant Power | Po | 100 000 | --- | 150 000 | mW | IF=5250mA |
| Peak Wavelength | λp | 430 | 432.5 | 435 | nm | IF=5250mA |
