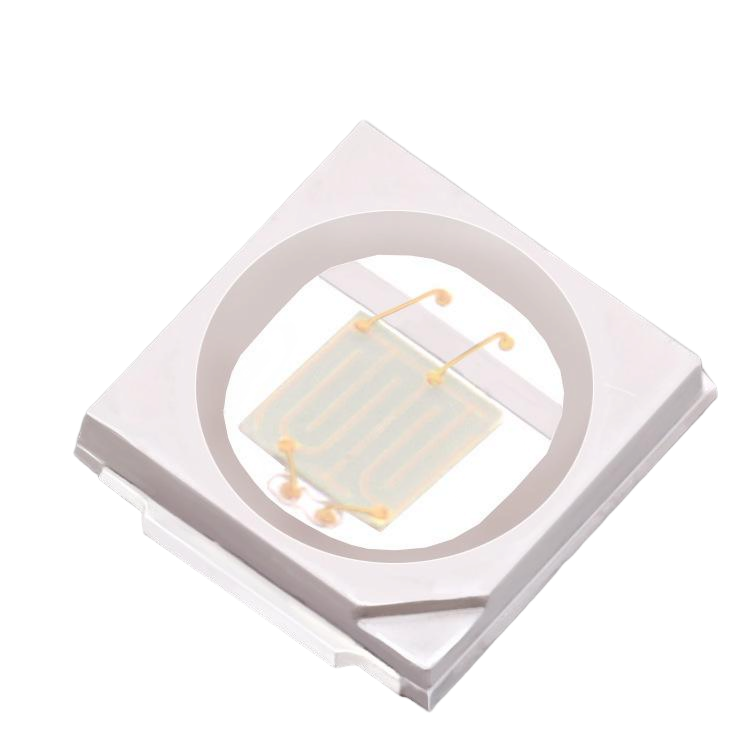

SMD3030 1W 3W Violet 430nm LED
Features:
- 99.99% gold wire bonding, 1.2mil
- EMC Substrate
- Epileds, 1pcs * 45mil Chips
- Meet CE, ROHS Compliant
- Applications: Medical Instruments, Horticulture, Algrea Growing, Insect Control and Scientific Instruments.
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available.
- Beam Angle: 120 degree
- 1-3W 3030 package is available for the UV wavelength ranged from 365nm-420nm; Blue green ranged from 430nm-560nm.
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

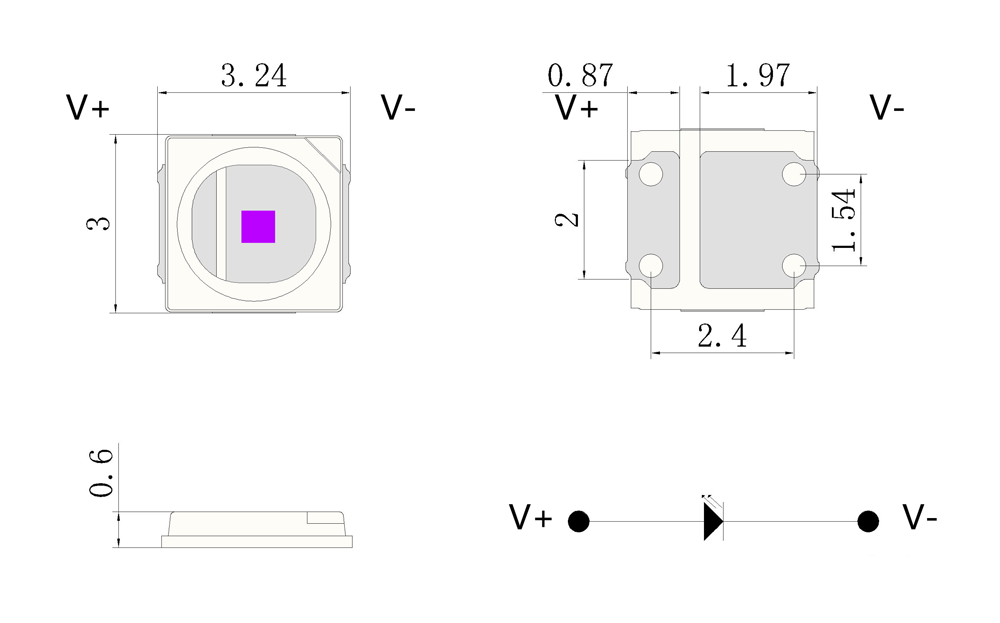

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 3.0 | --- | 3.4 | V | IF=350mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=350mA |
| Radiant Power | Po | 250 | --- | 350 | mW | IF=350mA |
| Peak Wavelength | λp | 430 | 432.5 | 435 | nm | IF=350mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
