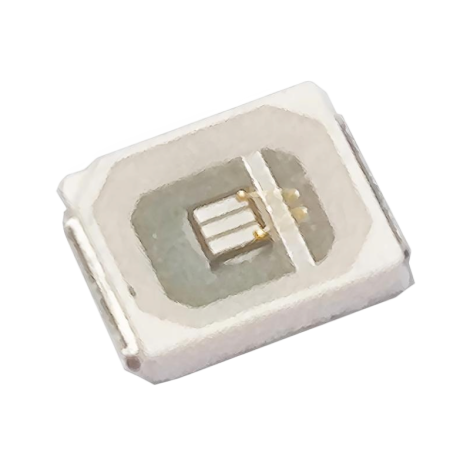

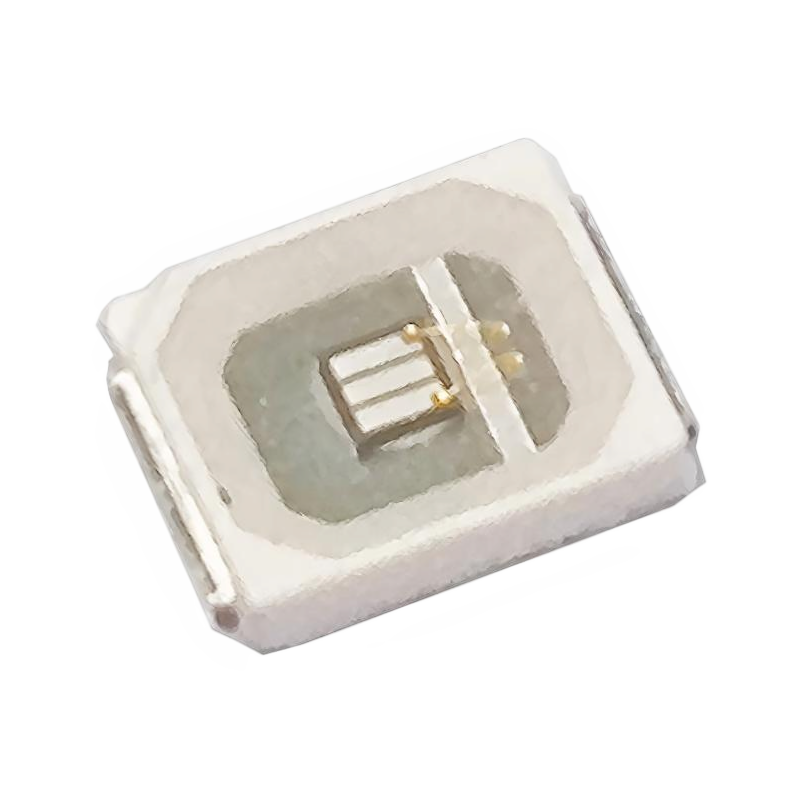

SMD2835 0.2W 0.5W 430nm Custom UV LED for Blue Curing and Decorative Purple Light
Features:
- 99.99% gold wire bonding
- Meet CE, ROHS Compliant
- Applications: UV Curing Systems, Decorative Purple Lighting, Special Effects Lighting, Adhesive Curing, Resin Hardening, Stage Lighting, Artistic Installations, Authentication Systems.
- Beam Angle: 120 degrees
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

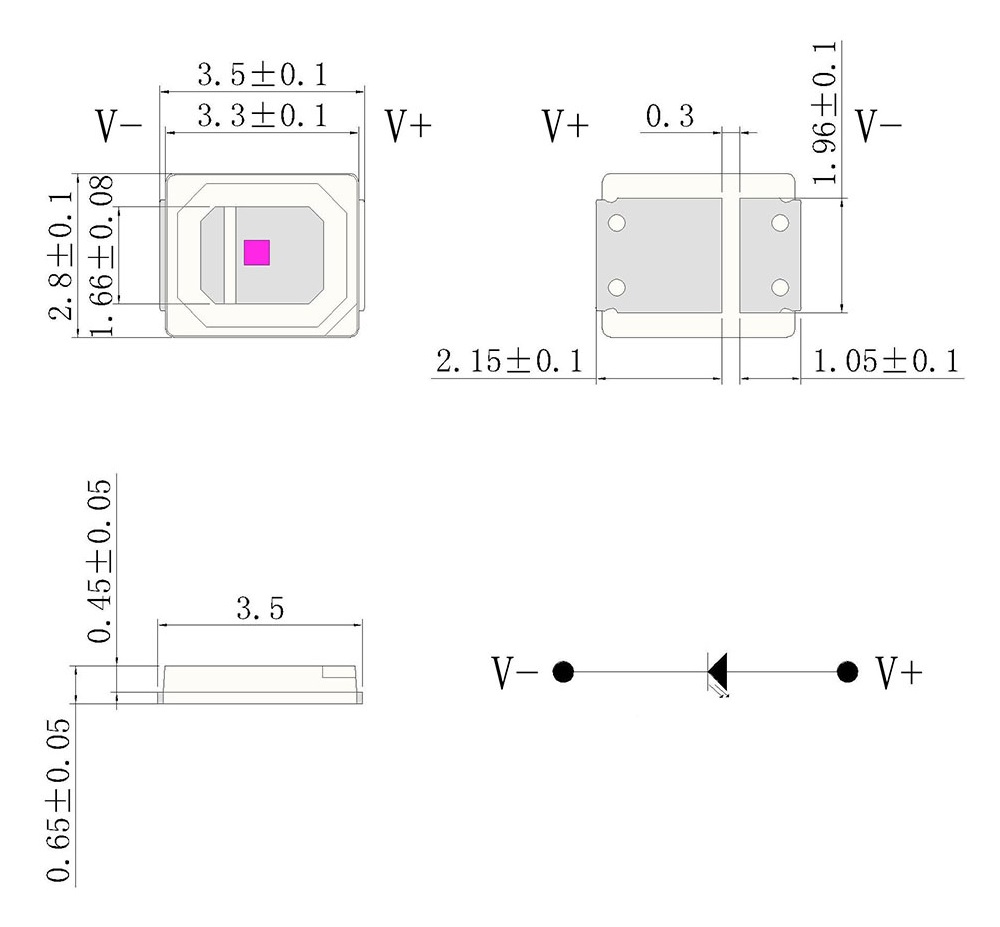

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 3.0 | --- | 3.4 | V | IF=150mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=150mA |
| Radiant Power | Po | 100 | --- | 150 | mW | IF=150mA |
| Peak Wavelength | λp | 425 | 430 | 435 | nm | IF=150mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
