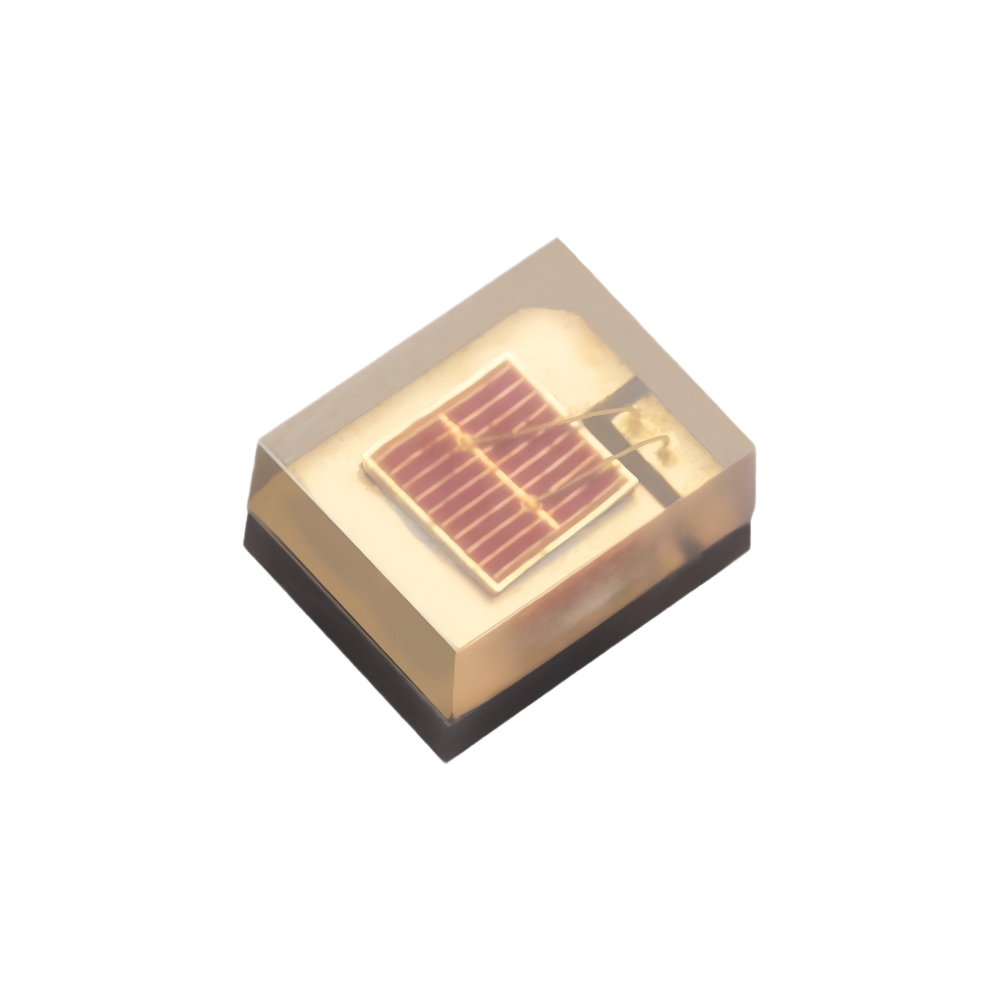

910nm 1W 3W SMD2016 IR High Power LED
Product Model: WL-3P2016EP140R-910
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic Substrate
- Epileds/Epistar, 1pcs * 42mil Chips
- Meet CE, ROHS Compliant
- Applications: Moisture Content Detection, Industrial Process Control, Gas Sensing Systems, Security Surveillance, Biomedical Sensing, Machine Vision Systems, Automotive Driver Monitoring, and Scientific Research.
- Beam Angle: 140 degrees
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535, SMD5050, SMD7070, SMD9090 are all available
- Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.

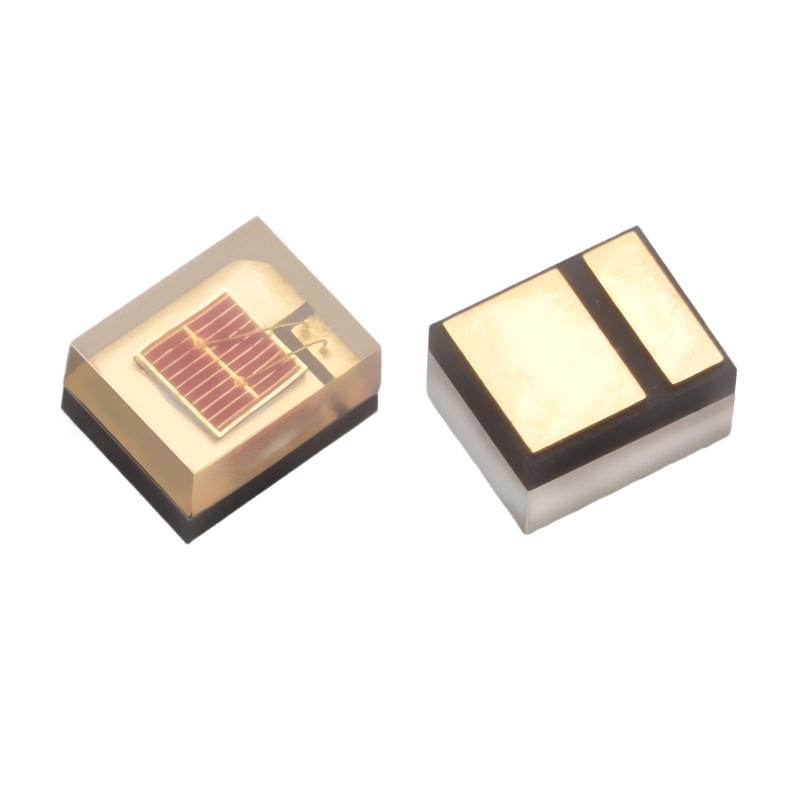

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.3 | --- | 1.5 | V | IF=700mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=700mA |
| Radiant Power | Po | 150 | --- | 250 | mW | IF=700mA |
| Peak Wavelength | λp | 905 | 910 | 915 | nm | IF=700mA |
