SMD2835 0.2W 0.5W 910nm Custom IR LED for Red Therapy Light
Product Model: WL-05P2835EP120IR-910
Features:
- 99.99% gold wire bonding
- Meet CE, ROHS Compliant
- Applications: Medical and Scientific Instrument, Inspection, Surveillance Systems, CCTV Camera, Night Vision, Machine Vision and Industrial Application.
- Beam Angle: 120 degrees
- Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.

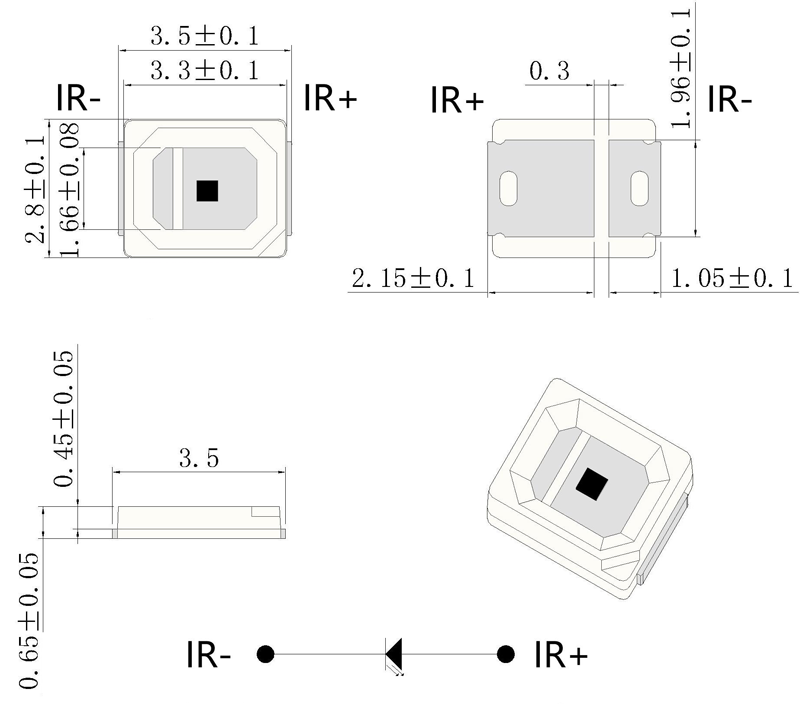

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.3 | --- | 1.6 | V | IF=150mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=150mA |
| Radiant Power | Po | 40 | --- | 60 | mW | IF=150mA |
| Peak Wavelength | λp | 905 | 910 | --- | nm | IF=150mA |
