SMD2835 0.2W 0.5W 910nm Custom IR LED with 30° 60° 90° dome lens
Product Model: WL-05P2835EP30IR-910
Features:
- 99.99% gold wire bonding
- Meet CE, ROHS Compliant
- Applications: Medical and Scientific Instrument, Inspection, Surveillance Systems, CCTV Camera, Night Vision, Machine Vision and Industrial Application.
- Custom Solution: We accept custom multi-color combination
- 100% Quality Assurance
- The Infrared wavelengths is available from 700nm to1500nm.
- Beam Angle: 30° 60° and 90° are available.
- We provide custom LED design, if you need any support, please contact us

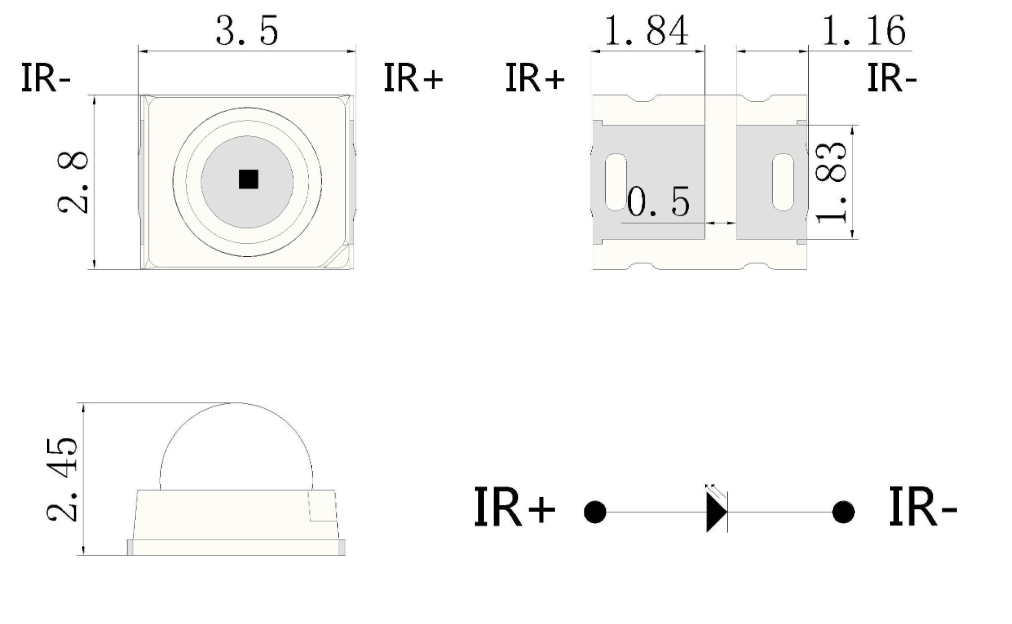

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.3 | --- | 1.6 | V | IF=150mA |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 120 | --- | deg. | IF=150mA |
| Radiant Power | Po | 50 | --- | 80 | mW | IF=150mA |
| Peak Wavelength | λp | 905 | 910 | --- | nm | IF=150mA |
