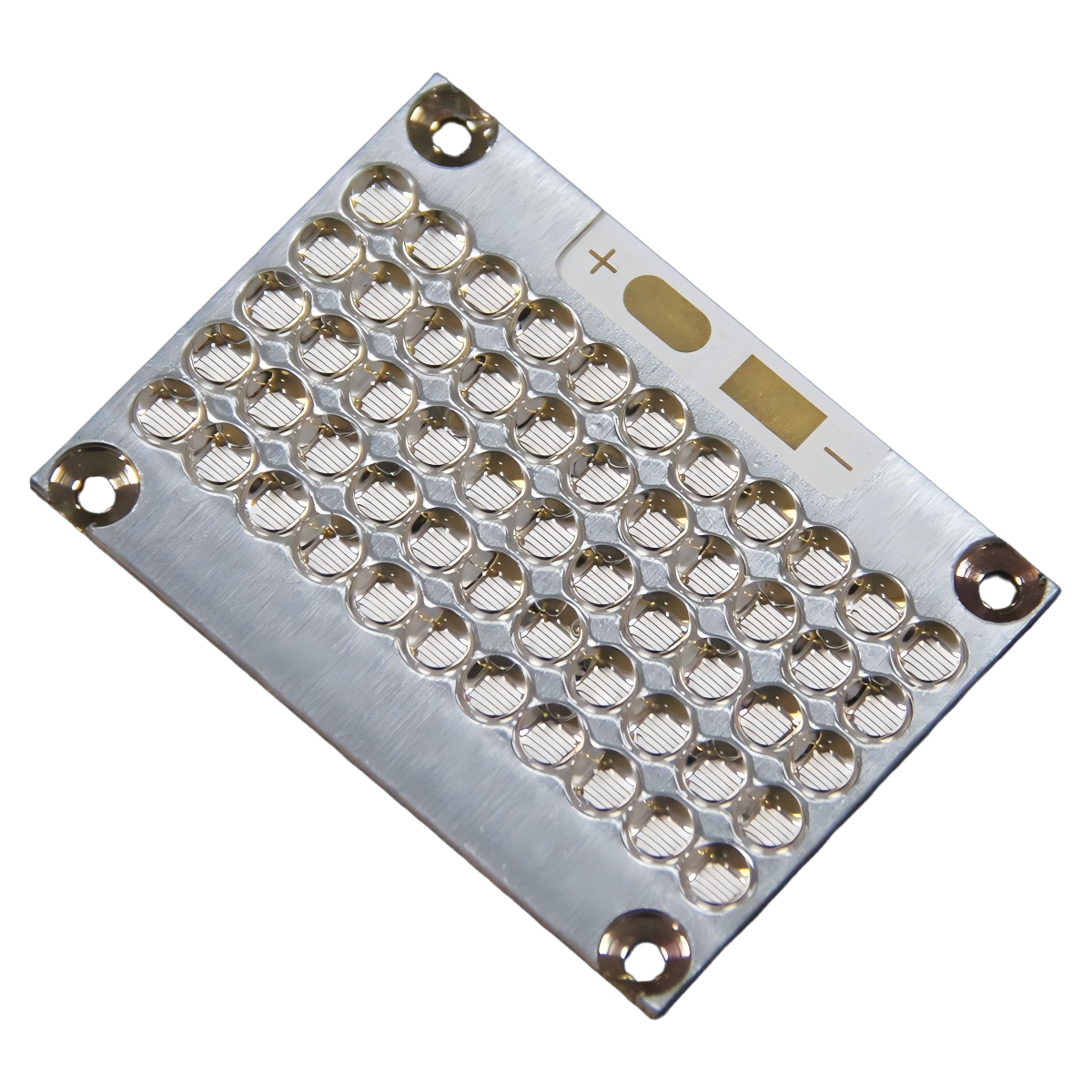

Custom 140W UV LED Module for UV Curing and Medical
Features:
- 99.99% gold wire bonding, 1.2mil
- Epileds
- Quartz Lens, Copper Substrate
- Meet CE, ROHS Compliant
- Applications: Medical Instruments, UV glue Curing, UVIVF (UV Photography) and other professional application.
- Available Beam Angle: 30°，60°
- Dies Connection: 11 in series, 5 in parallel
- Type: The Module could be customized and integrated with other wavelength from 365-1500nm.
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 35 | 40 | V | IF=3500mA | |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 60 | --- | deg. | IF=3500mA |
| Radiant Power | Po | 10 | 15 | W/CM² | IF=3500mA | |
| Peak Wavelength | λp | 365 | 420 | nm | IF=3500mA |
