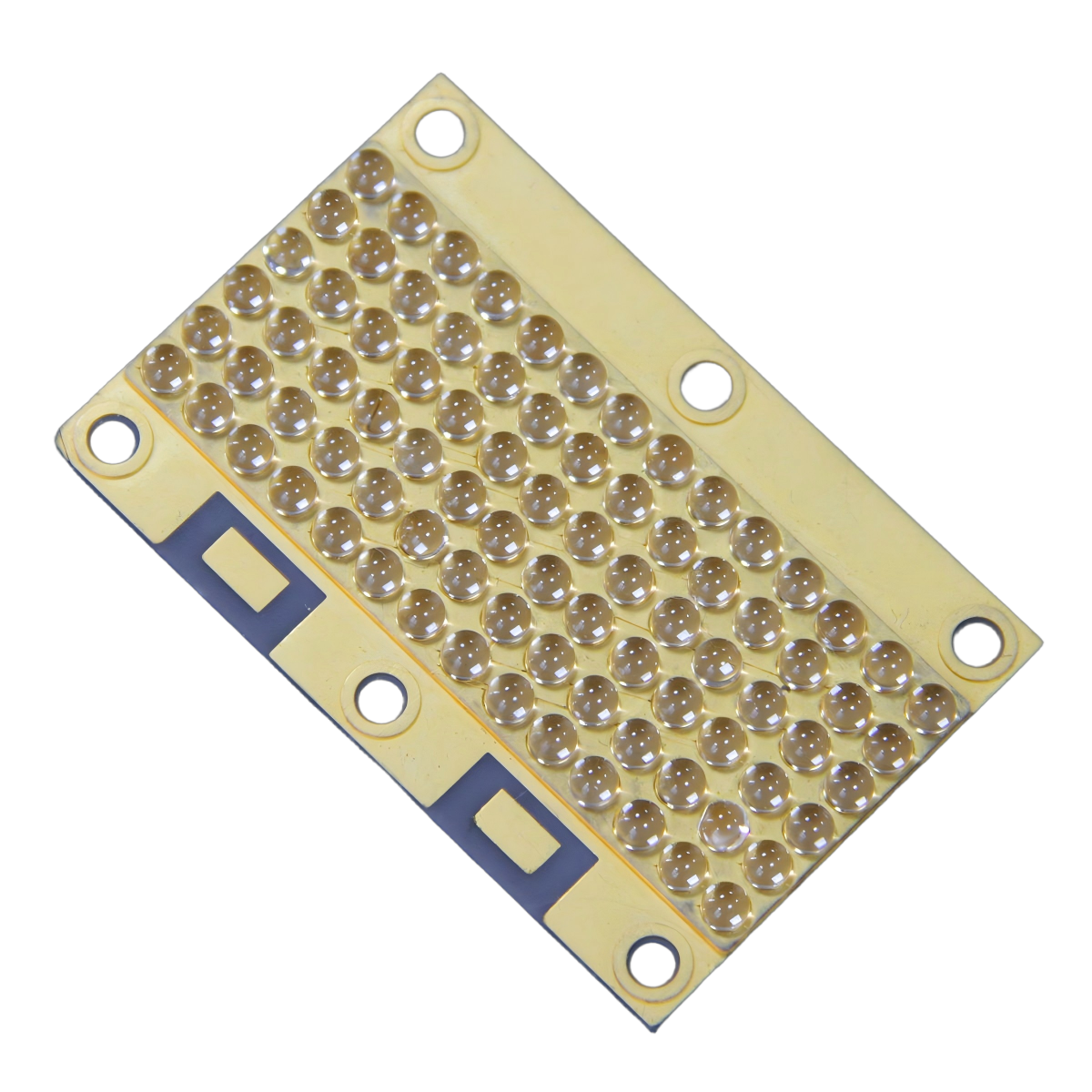

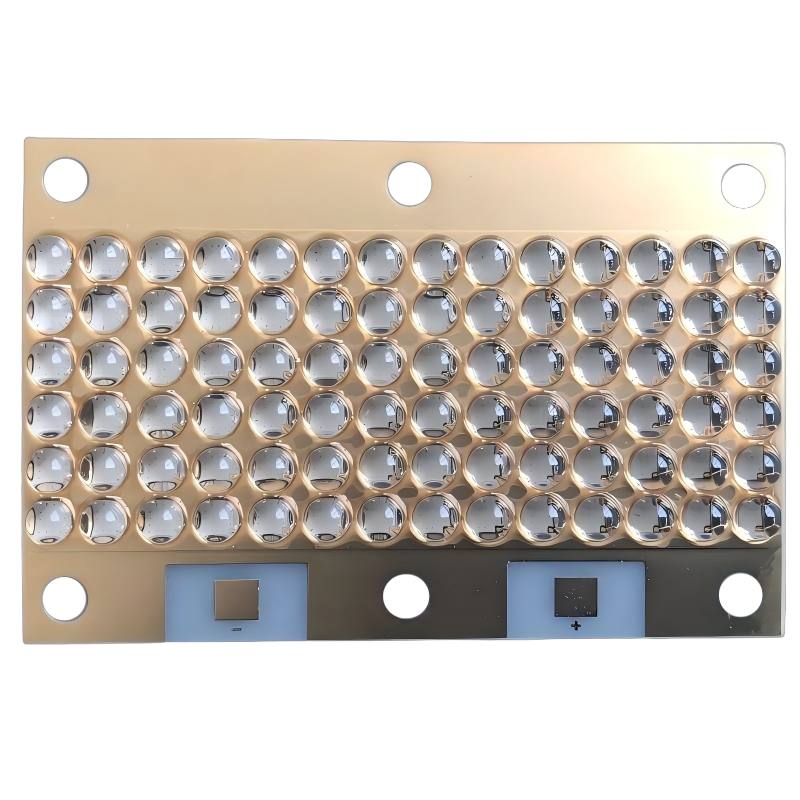

Custom 210W UV LED Module for UV Curing
Features:
- 99.99% gold wire bonding, 1.2mil
- Epileds, Seoul Die
- Quartz Lens, Ceramic Substrate
- Meet CE, ROHS Compliant
- Applications: Medical Instruments, UV glue Curing, UVIVF (UV Photography) and other professional application.
- Available Beam Angle: 30°，60°，90°，120°
- Dies Connection: 14 in series, 6 in parallel
- Type: The Module could be customized and integrated with other wavelength from 365-1500nm.
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

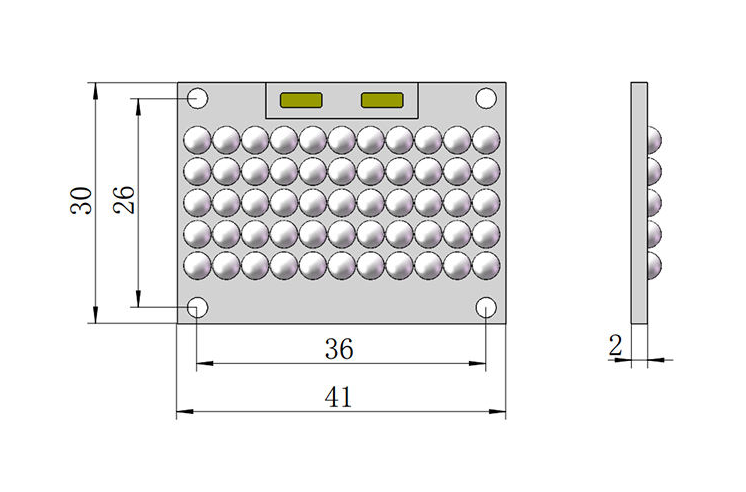

Package Dimensions (mm):
Specifications:
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 42 | 50 | V | IF=4200mA | |
| Reverse Current | IR | --- | --- | 50 | uA | VR=5V |
| 50% Power Angle | 2θ1/2 | --- | 60 | --- | deg. | IF=4200mA |
| Radiant Power | Po | 10 | 15 | W/CM² | IF=4200mA | |
| Peak Wavelength | λp | 365 | 420 | nm | IF=4200mA |
Product Documents
Download datasheets and spectrum test reports.
note： If the required document is not available, please contact us.
