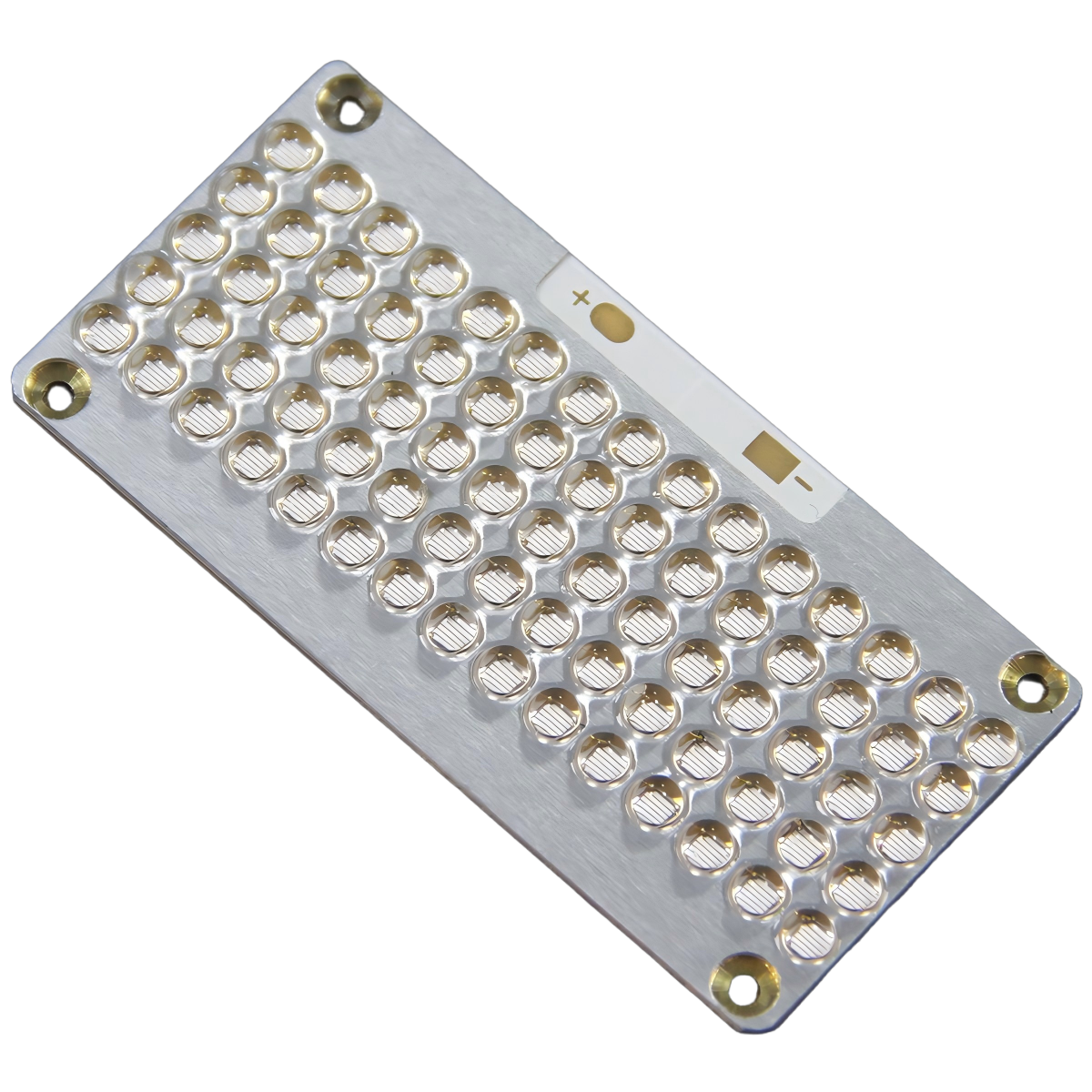

Custom 180W UV LED Module for UV Curing and Medical

Product Model: WL-P180EP3062UV60-365-420

Features:

  • 99.99% gold wire bonding, 1.2mil
  • Eplieds
  • Quartz Lens, Copper Substrate
  • Meet CE, ROHS Compliant
  • Applications: Medical Instruments, UV glue Curing, UVIVF (UV Photography) and other professional application.
  • Available Beam Angle:  30°,60°
  • Dies Connection: 15 in series, 5 in parallel
  • Type: The Module could be customized and integrated with other wavelength from 365-1500nm.
  • Custom Solution: We provide custom LED solutions, if you need any support, please contact us.

Package Dimensions (mm):

Custom 180W UV LED Module for UV Curing and Medical Package Dimensions

Specifications:


Parameter Symbol Min. Typ. Max. Unit Test Condition
Forward Voltage VF 48 54 V IF=3500mA
Reverse Current IR --- --- 50 uA VR=5V
50% Power Angle 2θ1/2 --- 60 --- deg. IF=3500mA
Radiant Power Po 10 15 W/CM² IF=3500mA
Peak Wavelength λp 365 420 nm IF=3500mA
