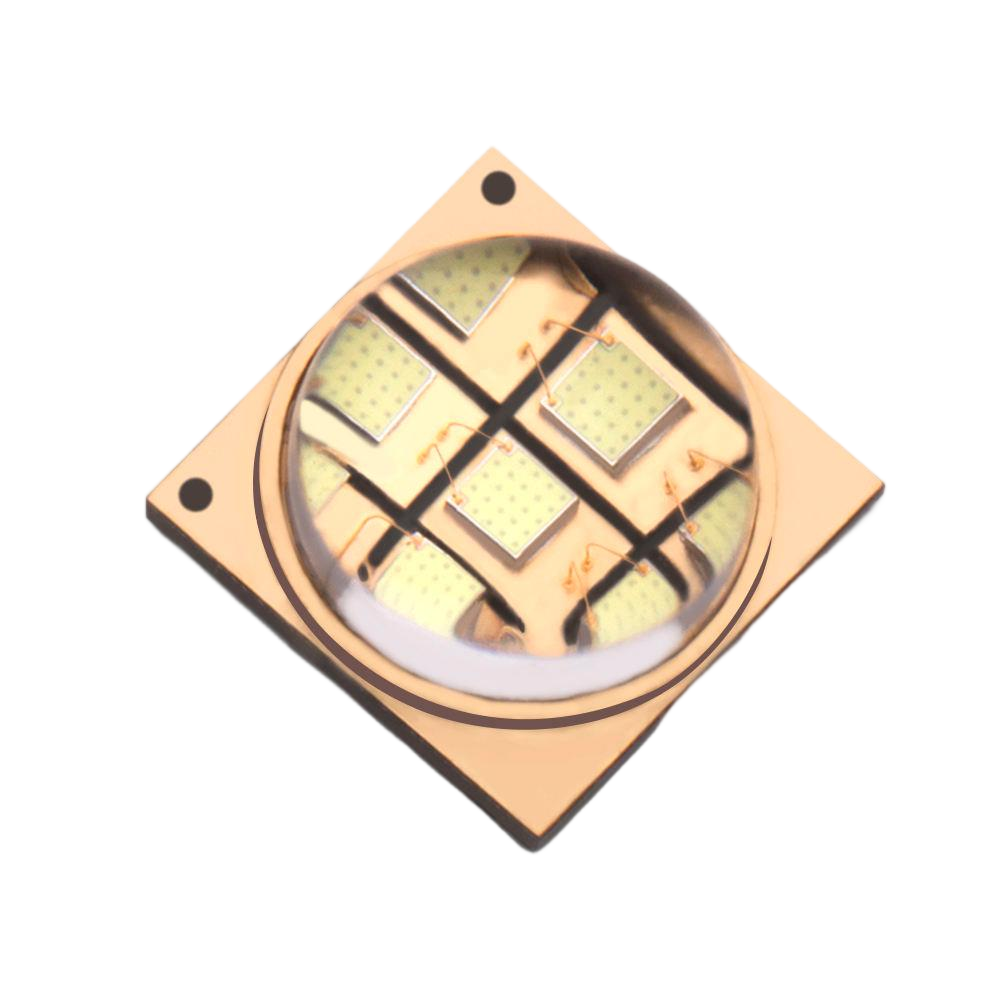

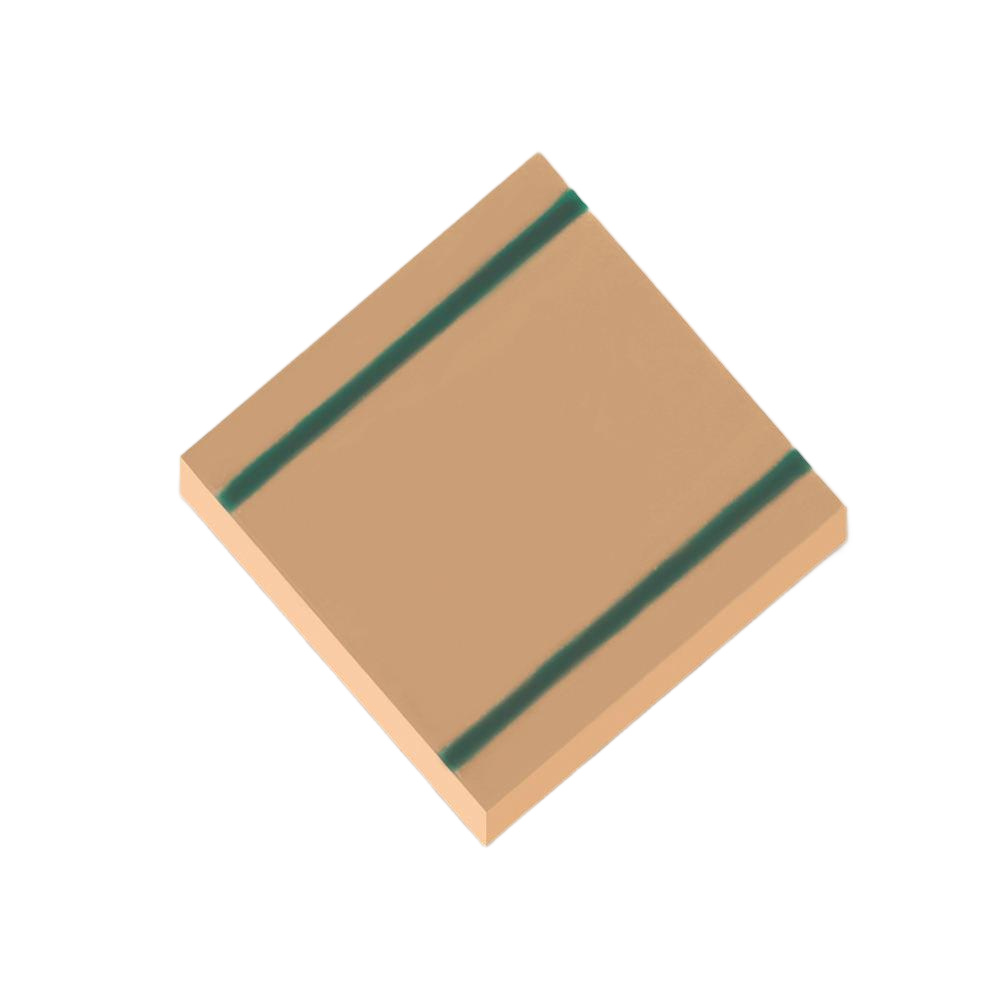

Custom 9090 SMD 15W 520nm Green High Power LED
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate with Gold Coating
- Quartz lens
- Sanan, 9pcs * 38mil Chips
- Meet CE, ROHS Compliant
- Applications: Automative Lighting, Stage Lighting, Flashlight and Stage Lighting
- Beam Angle: 100°
- Packaging Size: 2835 (2.8X3.5mm), 3030 (3.0X3.0mm), 3535(3.5X3.5mm), 5050(5.0X5.0mm) , 7070(7.0X7.0mm) are all available
- Custom Wavelength: The wavelength from 365nm to 1500nm are all available in 9090 package.
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Absolute Maximum Rating @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
|---|---|---|---|
| Continous Forward Current | IF | 2100 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 2300 | mA |
| Reverse Voltage | VR | 9 | V |
| Power Dissipation | PD | 15 | W |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +80°C | |
| Storage Temperature | TSTG | -35°C to +100°C | |
| Lead Soldering Temperature | TSOL | 260°C | |
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | G | 8 | 9 | V | IF=2100mA | |
| Luminous Flux | Φ | G | 1500 | 1600 | 1700 | Lm | IF=2100mA |
| Dominant Wavelength | λp | G | 520 | 523 | 525 | nm | IF=2100mA |
| Reverse Current | IR | 0 | 10 | μA | VR=12V | ||
| Viewing Angle | 2θ1/2 | 100 | deg | IF=2100mA | |||
| Recommend Forward Current | IF(rec) | G | 2100 | mA |
