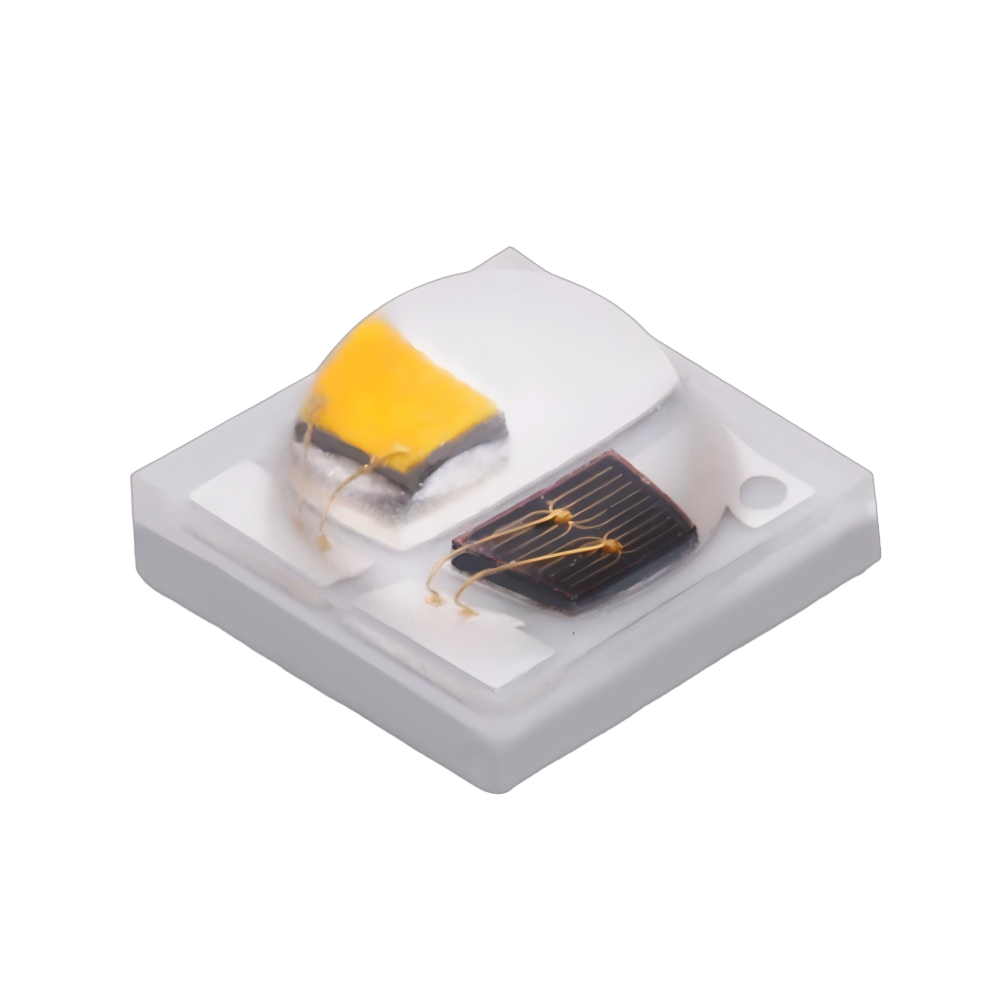

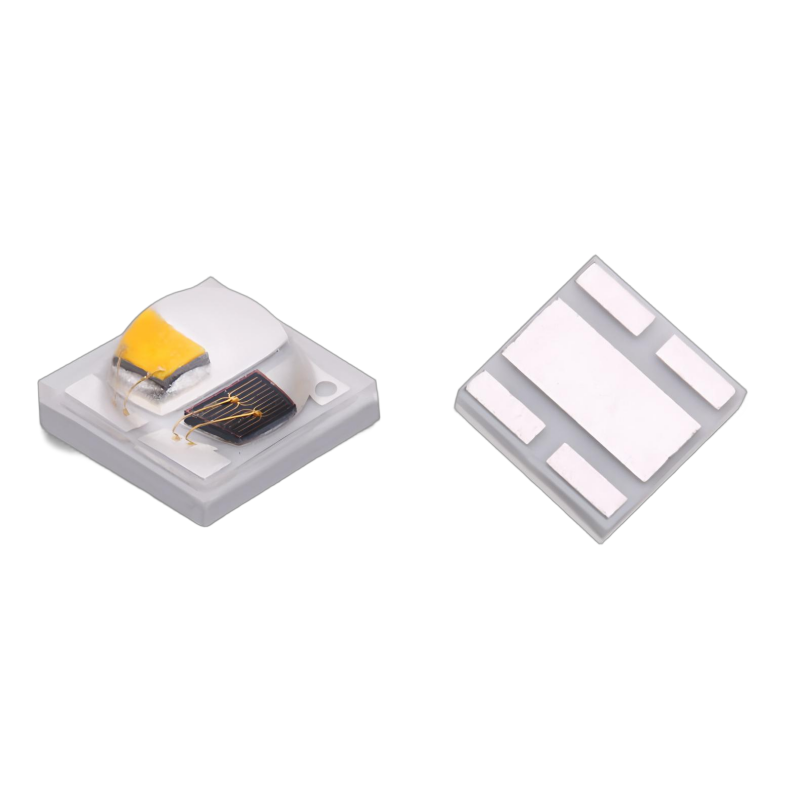

SMD3535 3000K+ 850nm LED for CCTV Camera
Features:
- 99.99% gold wire bonding, 1.2mil
- Ceramic substrate
- Meet CE, ROHS Compliant
- Applications: Home Smart Appliance, CCTV Camera
- Beam Angle: 30°, 60°, 90°, 120° and Flat lens (without dome lens) are all available.
- Packaging Type: SMD3535 and SMD5050 are all available
- Available Color Temperature: 2700K-3200K, 4000K-5000K, 5000-6000K, The CRI>90
- The package also could be customized with other available wavelengths/colors (The wavelength is available from 365nm-1600nm). We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.
Package Dimensions (mm):
Absolute Maximum Rating @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
|---|---|---|---|
| Continous Forward Current | IF | 700 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 1000 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 6 | W |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +85°C | °C |
| Storage Temperature | TSTG | -35°C to +105°C | °C |
| Lead Soldering Temperature | TSOL | 360°C | °C |
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|---|
| Forward Voltage | VF | IR | 1.4 | 1.8 | V | IF=700mA | |
| WW | 3.0 | 3.4 | V | IF=700mA | |||
| Reverse Current | IR | 10 | μA | VR=5V | |||
| Viewing Angle | 2θ1/2 | 120 | deg | IF=700mA | |||
| Luminous Flux | Φ | IR | 300 | 500 | mW | IF=700mA | |
| Radiant Power | Po | WW | 200 | 230 | lm | IF=700mA | |
| Wavelengths | λp | IR | 845 | 850 | 855 | nm | IF=700mA |
| WW | 2700 | 3000 | 3200 | K | IF=700mA |
