EMC5050 5W Sunlight Spectrum High Power LED
Product Model: WL-5P5050ES120CW-W-S
Features:
- 99.99% gold wire bonding
- EMC Substrate
- Meet CE, ROHS Compliant
- Applications: LED Strips, LED Tube lights, downlights and other commercial lighting
- The Available package dimensions include: SMD2835, SMD3528, SMD5050 and SMD5730
- The Color Temperature could be customized: 3000K, 4000K, 5000K
- White LED Spectrum is available for common white, high CRI white; sunlight full spectrum and high CRI sunlight full spectrum.
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.

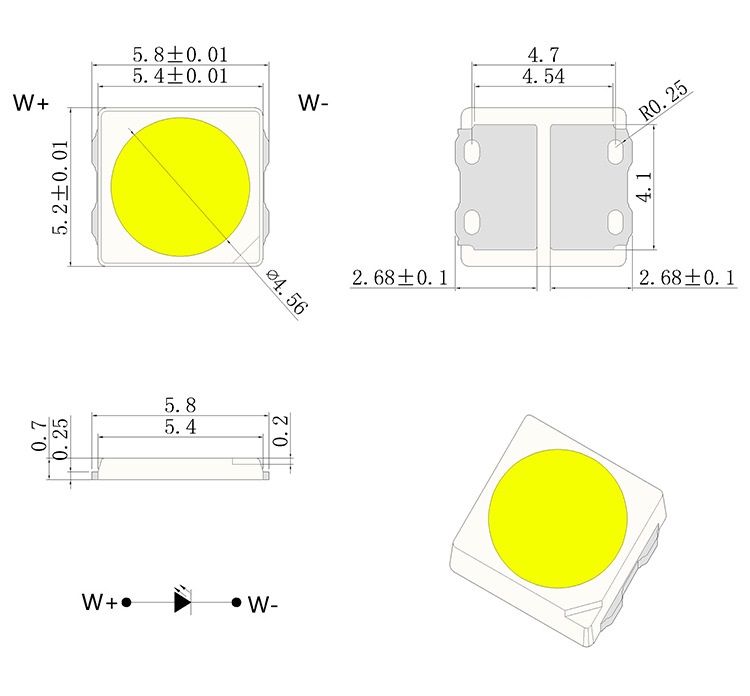

- Package Dimensions (mm):
- Absolute Maximum Rating @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
| Continous Forward Current | IF | 450 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 500 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 5 | W |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +85°C | °C |
| Storage Temperature | TSTG | -35°C to +105°C | °C |
| Lead Soldering Temperature | TSOL | 360°C | °C |
- Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Forward Voltage | VF | 9 | 10 | V | IF=450mA | |
| Reverse Current | IR | 10 | μA | VR=40V | ||
| Viewing Angle | 2θ1/2 | 120 | deg | IF=450mA | ||
| Color Rendering Index | Ra | 95 | IF=450mA | |||
| Luminous Flux | Φ | 300 | 400 | lm | IF=450mA | |
| Color Temperature | Tc | 5000 | 6000 | K | IF=450mA |
