EMC5050 3W Cool White High Power LED
Features:
- 99.99% gold wire bonding
- EMC Substrate
- Meet CE, ROHS Compliant
- Applications: LED Strips, LED Tube lights, downlights and other commercial lighting
- The Available package dimensions include: SMD2835, SMD3528, SMD5050 and SMD5730
- The Color Temperature could be customized: 3000K, 4000K, 5000K
- White LED Spectrum is available for common white, high CRI white; sunlight full spectrum and high CRI sunlight full spectrum.
- Custom Solution: We provide custom LED solutions, if you need any support, please contact us.
Quantity:
Product model copied to clipboard!
Product Description
Learn about dimensions and performance data of this LED.

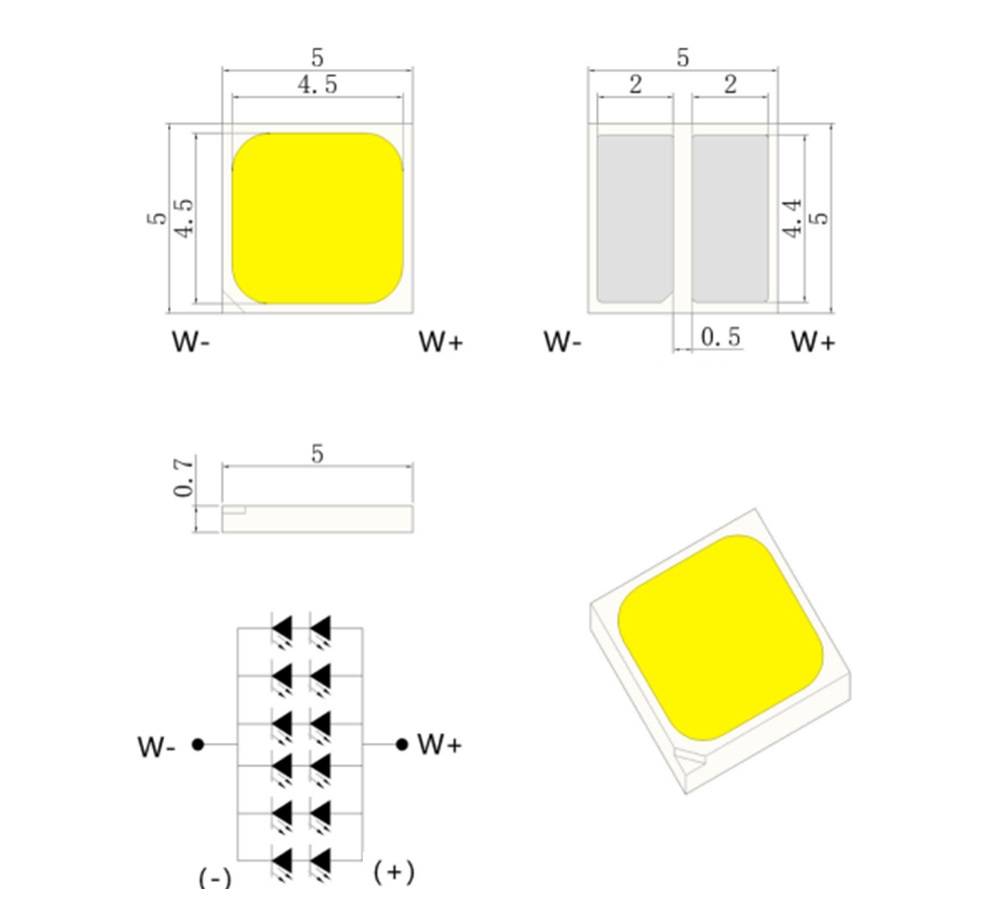

Package Dimensions (mm):
Absolute Maximum Rating @ Ta=25°C
| Parameter | Symbol | Maximum Rating | Unit |
|---|---|---|---|
| Continous Forward Current | IF | 700 | mA |
| Peak Foward Current (1/10 Duty Cycle, 0.1ms Plus Width) | IFp | 1000 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 3 | W |
| Electrostatic Discharge | ESD | 1000 | V |
| Operating Temperature | TOPR | -25°C to +85°C | °C |
| Storage Temperature | TSTG | -35°C to +105°C | °C |
| Lead Soldering Temperature | TSOL | 360°C | °C |
Electrical Optical Characteristic @ Ta=25°C
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 5.5 | 6.5 | V | IF=700mA | |
| Reverse Current | IR | 10 | μA | VR=40V | ||
| Viewing Angle | 2θ1/2 | 120 | deg | IF=700mA | ||
| Color Rendering Index | Ra | 70 | IF=700mA | |||
| Luminous Flux | Φ | 600 | 800 | lm | IF=700mA | |
| Color Temperature | Tc | 5000 | 6000 | K | IF=700mA |
