SMD5050 5W Cool White High Power LED

Product Model: WL-5P5050EP120CW-W


  • 99.99% gold wire bonding, 1.2mil
  • Ceramic substrate
  • Meet CE, ROHS Compliant
  • Applications: Flashlight, downlights and other commercial lighting
  • Beam Angle: 60 degrees and 120 degrees, 180 degree - Flat lens (without dome lens) are available.
  • Chips connection is available for 2 in series, 2 in parallel; 1 in series, 4 in parallel.
  • Packaging Type: SMD2835, SMD3030, SMD3528, SMD3535 and SMD5050 are all available
  • Available Color Temperature: 2700K-3200K, 4000K-5000K, 5000-6000K, 6000K-7000K, 8000K, 10000K, 12000K, 14000K, 15000K, 16000K, 18000K, 20000K, 25000K
  • White LED Spectrum is available for common white, high CRI white; sunlight full spectrum and high CRI sunlight full spectrum.
  • Custom Solution: We could offer custom LED solutions, if you need any support, please contact us.
  • Package Dimensions (mm):

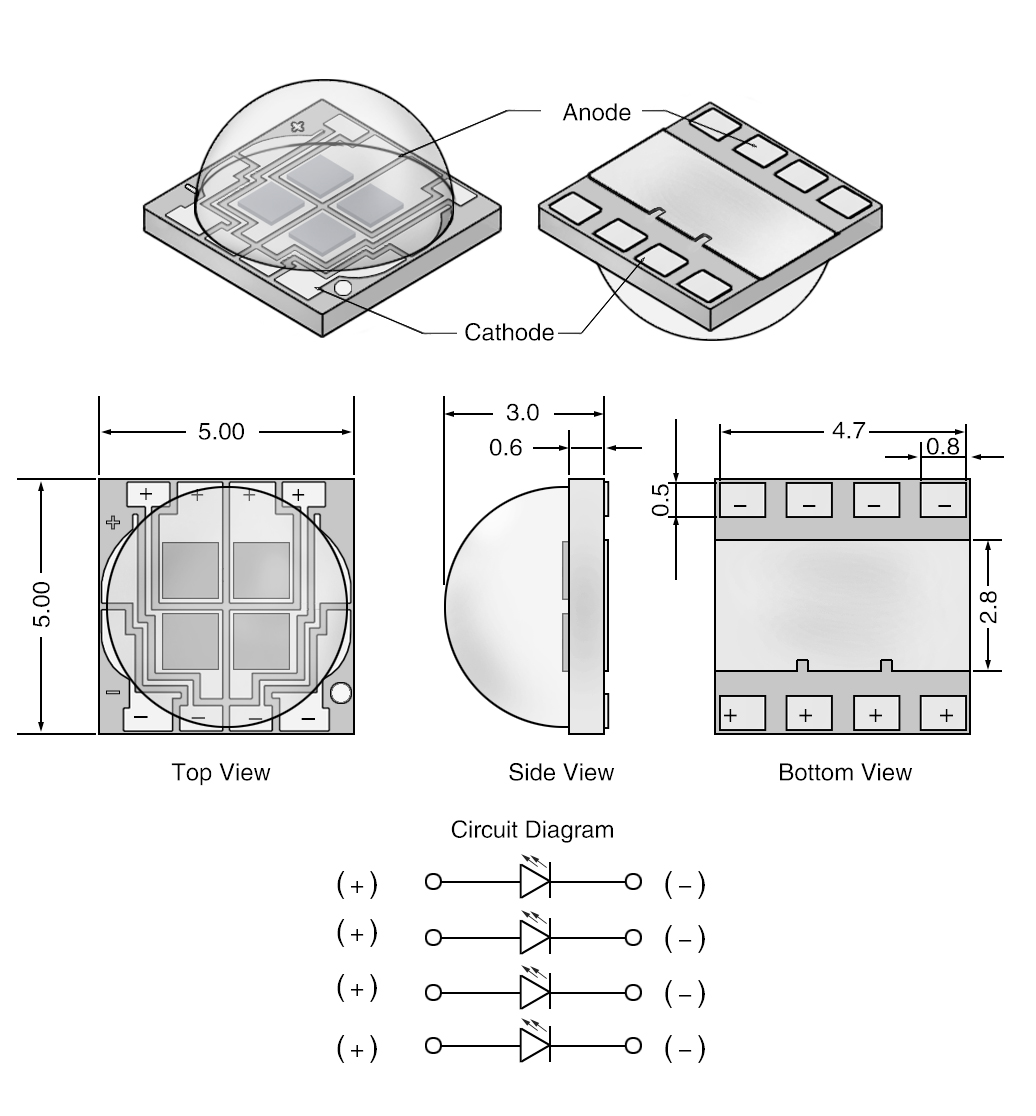

SMD5050 5W Cool White High Power LED Package Dimensions

  • Absolute Maximum Rating @ Ta=25°C
Parameter Symbol Maximum Rating Unit
Continous Forward Current IF 700 mA
Peak Foward Current
(1/10 Duty Cycle, 0.1ms Plus Width)
IFp 1000 mA
Reverse Voltage VR 5 V
Power Dissipation PD 5 W
Electrostatic Discharge ESD 1000 V
Operating Temperature TOPR -25°C to +85°C °C
Storage Temperature TSTG -35°C to +105°C °C
Lead Soldering Temperature TSOL 360°C °C
  • Electrical Optical Characteristic @ Ta=25°C
Parameter Symbol Min. Typ. Max. Unit Test Condition
Forward Voltage VF 6.0 7.0 V IF=700mA
Reverse Current IR 10 μA VR=40V
Chromaticity Coordinates X 0.31 IF=700mA
Y 0.33 IF=700mA
Viewing Angle 2θ1/2 120 deg IF=700mA
Color Rendering Index Ra IF=700mA
Luminous Flux Φ 500 600 lm IF=700mA
Color Temperature Tc 6000 8000 K IF=700mA
